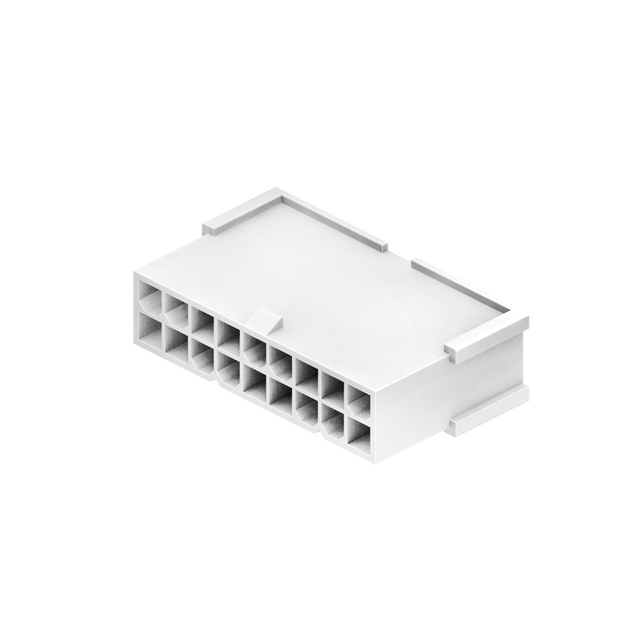

4282-3-18-D

Active

CnC Tech, LLC

CONN HOUSING PL 18 POS 4.2MM CRIMP ST CABLE MOUNT WHITE BAG

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HOUSING PL 18 POS 4.2MM CRIMP ST CABLE MOUNT WHITE BAG

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Type	Number of Rows	Fastening Type	Contact Termination	Mounting Type	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Note	Color	Connector Type	Row Spacing	Row Spacing
CnC Tech, LLC 4282-3-20-D	20	Male Pin	2	Locking Ramp	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Contacts Not Included	White	Plug	4.2 mm	0.165 in
CnC Tech, LLC 4282-3-14-D	14	Male Pin	2	Locking Ramp	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Contacts Not Included	White	Plug	4.2 mm	0.165 in
CnC Tech, LLC 4282-3-12-D	12	Male Pin	2	Locking Ramp	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Contacts Not Included	White	Plug	4.2 mm	0.165 in
CnC Tech, LLC 4282-3-24-D	24	Male Pin	2	Locking Ramp	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Contacts Not Included	White	Plug	4.2 mm	0.165 in
CnC Tech, LLC 4282-3-08-D	8	Male Pin	2	Locking Ramp	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Contacts Not Included	White	Plug	4.2 mm	0.165 in
CnC Tech, LLC 4282-3-02-D	2	Male Pin	2	Locking Ramp	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Contacts Not Included	White	Plug	4.2 mm	0.165 in
CnC Tech, LLC 4282-3-18-D	18	Male Pin	2	Locking Ramp	Crimp	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Contacts Not Included	White	Plug	4.2 mm	0.165 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.03
Digikey	Bulk	1000	$ 0.27

General part information

18 Rectangular Connectors - Housings Plug White 0.165" (4.20mm)
