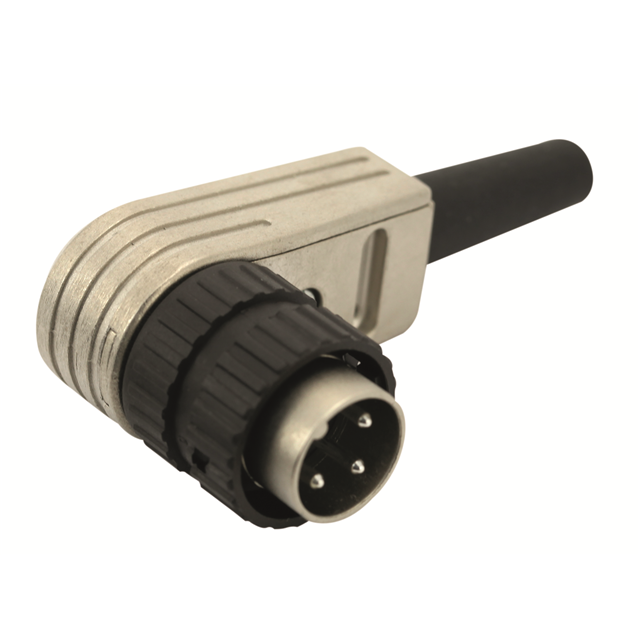

T 3424 058

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR WITH INTERN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR WITH INTERN

Technical Specifications

Parameters and characteristics for this part

Specification	T 3424 058

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell, Cable Clamp, Strain Relief
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-6
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Contact Finish - Mating	Orientation	Color	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Insert Material	Shell Material	Applications	Number of Positions	Mounting Type	Fastening Type	Features	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Shielding	Shell Size - Insert	Ingress Protection	Material Flammability Rating	Shell Finish	Voltage Rating	Connector Type
Amphenol Sine Systems Corp T 3424 058	Gold	Keyed	Black Silver	100 °C	-40 °C	Metal	Thermoplastic	Zinc Die Cast	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	6	Free Hanging (In-Line) Right Angle	Bayonet Lock	Backshell Cable Clamp Coupling Nut Strain Relief	7 A	4 mm 6 mm	0.157 in 0.236 in	Unshielded	M16-6	IP40	UL94 V-0	Nickel	250 VDC	Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Circular Connector Plug, Male Pins Solder Cup
