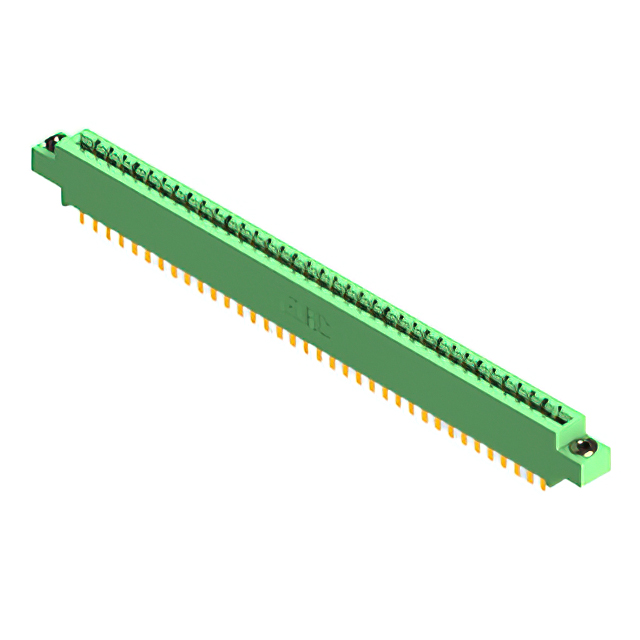

837-072-500-803
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-072-500-803
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-072-500-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
837-072 Series
...
| Part | Contact Finish | Material - Insulation | Number of Positions | Color | Card Type | Termination Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Mounting Type | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Solder | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Wire Wrap | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Solder | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Wire Wrap | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Solder | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | Side Mount Opening Unthreaded | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Solder | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | |||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Wire Wrap | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | Side Mount Opening Unthreaded | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Solder | 10 Áin | 0.25 Ám | 2 | Board Edge Straddle Mount | Dual | Side Mount Opening Unthreaded | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 3.25 mm | 0.128 in | Card Extender | ||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | 72 | Green | Non Specified - Dual Edge | 2 | Copper Alloy | 125 °C | -40 °C | 36 | Solder | 10 Áin | 0.25 Ám | 2 | Through Hole Right Angle | Dual | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 159.24 | |
Description
General part information
837-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
