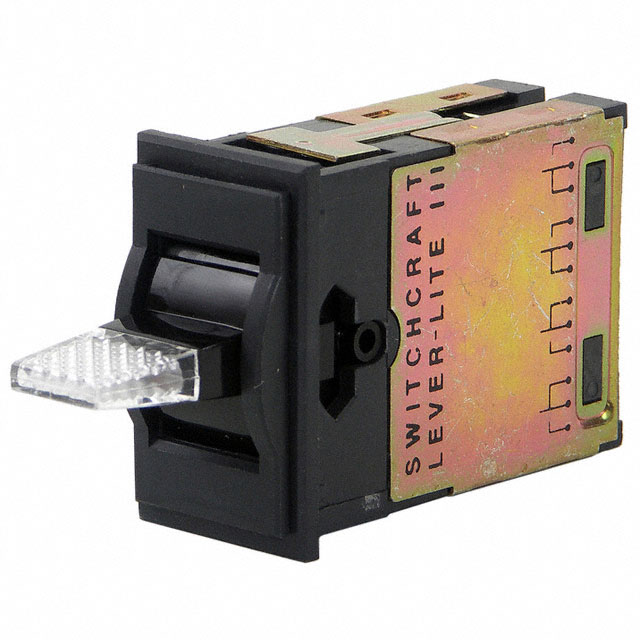

84306LX
ActiveSwitchcraft Inc.
SWITCH ROCKER 1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
84306LX
ActiveSwitchcraft Inc.
SWITCH ROCKER 1A 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 84306LX |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Paddle - Illuminated |
| Current Rating (Amps) | 1 A |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 34.92 mm |
| Panel Cutout Dimensions [y] | 19.05 mm |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
84306L Series
Rocker Switch 1A (DC) Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
