S11MA7-P09MCC0-6550

Active

ODU

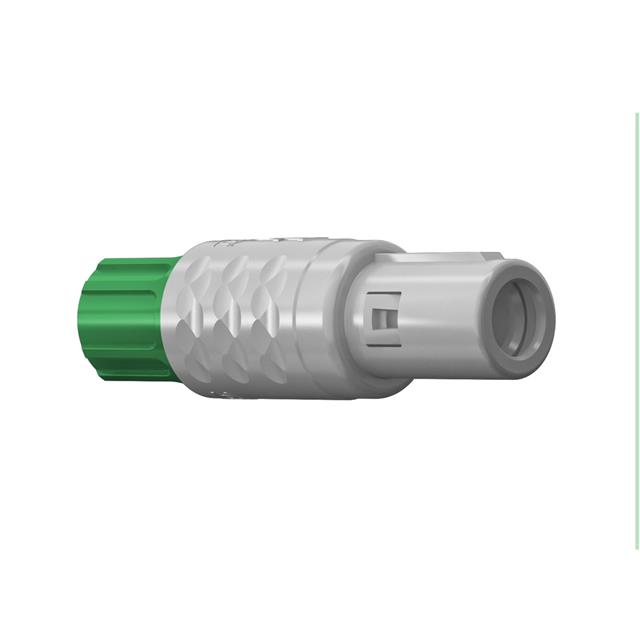

CONN PLUG MALE 9P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S11MA7-P09MCC0-6550

Active

ODU

CONN PLUG MALE 9P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S11MA7-P09MCC0-6550

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Color	Green, Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	2.75 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	A
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

S11MA7-P Series

...

Part	Contact Material	Orientation	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shielding	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Ingress Protection	Applications	Fastening Type	Primary Material	Insert Material	Mounting Type	Features	Shell Material	Backshell Material, Plating	Color	Current Rating (Amps)	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
ODU S11MA7-P10MCC0-6550	Brass	A	1	-50 °C	120 °C	10	Unshielded	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Gray Green	2.75 A
ODU S11MA7-P10MCC0-6520	Brass	A	1	-50 °C	120 °C	10	Unshielded	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Gray Red	2.75 A
ODU S11MA7-P14MCC0-3930	Brass	A	1	-50 °C	120 °C	14	Unshielded	Gold			Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Gray White	2.5 A	2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11MA7-P02MPH0-5260	Brass	A	1	-50 °C	120 °C	2	Unshielded	Gold			Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Blue Gray	14 A					0.157 in	0.205 in	4 mm	5.2 mm
ODU S11MA7-P10MCC0-5240	Brass	A	1	-50 °C	120 °C	10	Unshielded	Gold			Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Gray Yellow	2.75 A					0.157 in	0.205 in	4 mm	5.2 mm
ODU S11MA7-P06MFD0-5260	Brass	A	1	-50 °C	120 °C	6	Unshielded	Gold			Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Blue Gray	4.55 A					0.157 in	0.205 in	4 mm	5.2 mm
ODU S11MA7-P14MCC0-5260	Brass	A	1	-50 °C	120 °C	14	Unshielded	Gold			Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Blue Gray	2.5 A					0.157 in	0.205 in	4 mm	5.2 mm
ODU S11MA7-P14MCC0-6560	Brass	A	1	-50 °C	120 °C	14	Unshielded	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Blue Gray	2.5 A
ODU S11MA7-P09MCC0-6550	Brass	A	1	-50 °C	120 °C	9	Unshielded	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Gray Green	2.75 A
ODU S11MA7-P04MJG0-6540	Brass	A	1	-50 °C	120 °C	4	Unshielded	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	Male Pins Plug	IP50	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Plastic	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	Polysulfone (PSU)	Gray Yellow	10 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.88

Description

General part information

S11MA7-P Series

9 Position Circular Connector Plug, Male Pins Solder Cup
