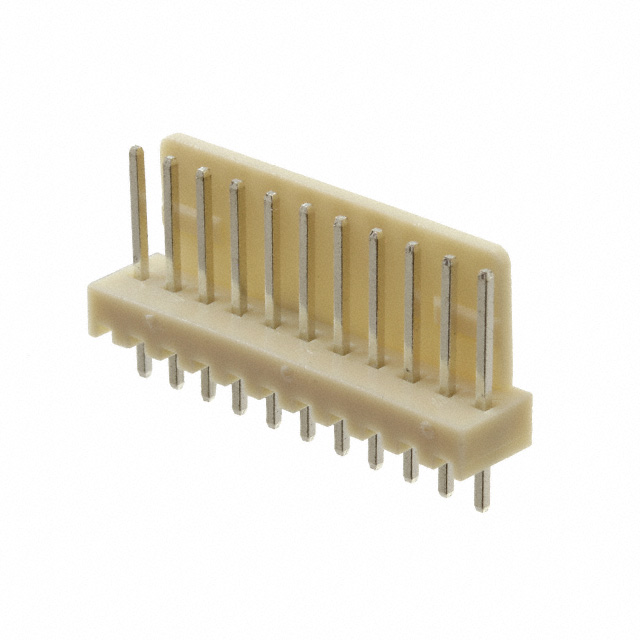

LHA-11-TS

Active

Adam Tech

CONN HEADER VERT 11POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 11POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHA-11-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.291 in
Contact Length - Mating	7.4 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Ivory
Insulation Height	0.134 in
Insulation Height	3.4 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Finish - Post	Connector Type	Insulation Height	Insulation Height	Voltage Rating	Number of Positions Loaded	Mounting Type	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Material	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Style	Shrouding	Contact Material	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Termination
Adam Tech LHA-11-TS	Tin	Header	0.134 in	3.4 mm	250 VAC	All	Through Hole	Friction Lock	0.291 in	7.4 mm	Square	Nylon Polyamide (PA)	3 A	14.2 mm	0.559 in	Ivory	11	-25 °C	85 °C	Male Pin	Board to Cable/Wire	Shrouded - 1 Wall	Brass	0.1 in	2.54 mm	1	0.134 in	3.4 mm	UL94 V-2	Solder
Adam Tech LHA-11-TRA	Tin	Header	0.228 in	5.8 mm	250 VAC	All	Through Hole Right Angle	Friction Lock	0.276 in	7 mm	Square	Polyamide (PA66) Nylon 6/6	3 A			White	11	-40 °C	105 ░C	Male Pin	Board to Cable/Wire	Shrouded - 1 Wall	Brass	0.1 in	2.54 mm	1	0.134 in	3.4 mm	UL94 V-2	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 11 position 0.100" (2.54mm)
