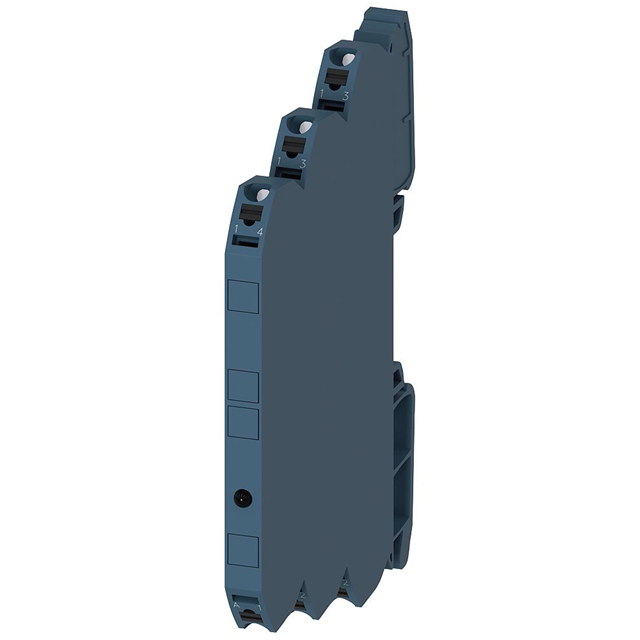

3RQ30702SB30

Active

Siemens

RELAY GEN PURPOSE SPST 500MA 24V

Search across all available documentation for this part.

Active

Siemens

RELAY GEN PURPOSE SPST 500MA 24V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Mounting Type	Termination Style	Output Type	Voltage - Input [Max]	Voltage - Input [Min]
Siemens 3RQ30702SB30	24VAC/DC	500 mA	-25 °C	60 °C	CCC CSA EAC RCM UL	DIN Rail	Spring Terminal	DC
Siemens 3RQ30701SB30	24VAC/DC	500 mA	-25 °C	60 °C	CCC CSA EAC RCM UL	DIN Rail	Screw Terminal	DC
Siemens 3RQ30702SG30		500 mA	-25 °C	60 °C	CCC CSA EAC RCM UL	DIN Rail	Spring Terminal	DC	230 V	110 VDC
Siemens 3RQ30701SG30		500 mA	-25 °C	60 °C	CCC CSA EAC RCM UL	DIN Rail	Screw Terminal	DC	230 V	110 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 196.69

General part information

Solid State SPST-NO (1 Form A)

Technical documentation and resources
