SSL-LX3044PGD

Active

Lumex Opto/Components Inc.

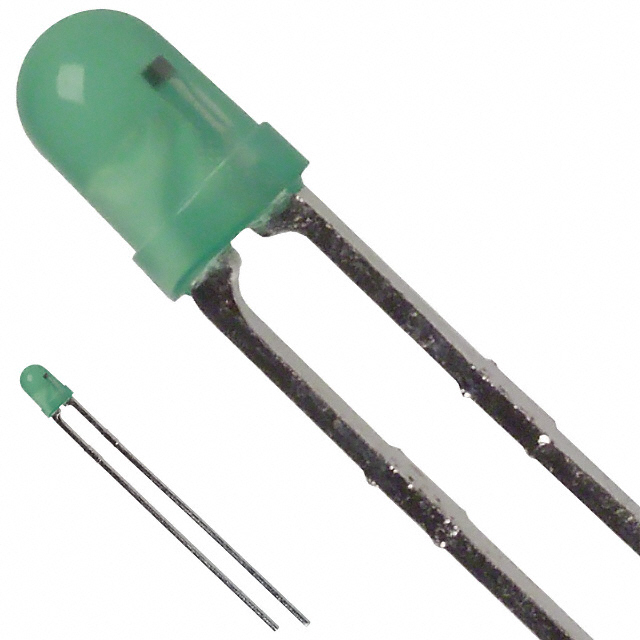

LED GREEN DIFFUSED T-1 T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX3044PGD

Active

Lumex Opto/Components Inc.

LED GREEN DIFFUSED T-1 T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSL-LX3044PGD

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	4.6 mm
Lens Color	Green
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	20 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	T-1
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	555 nm

SSL-LX3044 Series

Part	Current - Test	Supplier Device Package	Lens Transparency	Package / Case	Millicandela Rating	Lens Color	Lens Style	Configuration	Voltage - Forward (Vf) (Typ)	Height (Max) [Max]	Mounting Type	Viewing Angle	Lens Size	Lens Size	Color	Wavelength - Peak	Size / Dimension [diameter]
Lumex Opto/Components Inc. SSL-LX3044UWC	20 mA	T-1	Clear	Radial	1700 mcd	Colorless	Round with Domed Top	Standard	3.6 V	4.6 mm	Through Hole	60 °	3 mm	T-1	White
Lumex Opto/Components Inc. SSL-LX3044SOD	20 mA	T-1	Diffused	Radial	100 mcd	Orange	Round with Domed Top	Standard	2 V	4.6 mm	Through Hole	60 °	3 mm	T-1		610 nm
Lumex Opto/Components Inc. SSL-LX3044USBC	20 mA	T-1	Clear	Radial	1000 mcd	Colorless	Round with Domed Top	Standard	3.5 V	4.6 mm	Through Hole	30 °	3 mm	T-1	Blue
Lumex Opto/Components Inc. SSL-LX3044SIC	20 mA	T-1 (3mm)	Clear	Radial	1800 mcd	Colorless	Round with Domed Top	Independent	2.1 V	4.6 mm	Through Hole	30 °	3 mm	T-1	Red	636 nm	2.9 mm
Lumex Opto/Components Inc. SSL-LX3044SGT	20 mA	T-1	Clear	Radial	200 mcd	Green	Round with Domed Top	Standard	2.2 V	4.6 mm	Through Hole	30 °	3 mm	T-1	Green	565 nm
Lumex Opto/Components Inc. SSL-LX3044PGD	20 mA	T-1	Diffused	Radial	20 mcd	Green	Round with Domed Top	Standard	2.2 V	4.6 mm	Through Hole	60 °	3 mm	T-1	Green	555 nm
Lumex Opto/Components Inc. SSL-LX3044SID	20 mA	T-1	Diffused	Radial	100 mcd	Red	Round with Domed Top	Standard	2.1 V	4.6 mm	Through Hole	60 °	3 mm	T-1	Red	636 nm
Lumex Opto/Components Inc. SSL-LX3044SRSGW	20 mA 20 mA	T-1	Diffused	Radial	30 mcd 60 mcd	White	Round with Domed Top	Common Cathode	1.7 V 2.2 V	4.6 mm	Through Hole	60 °	3 mm	T-1	Green Red	565 nm 660 nm
Lumex Opto/Components Inc. SSL-LX3044YD-5V		T-1	Diffused	Radial	6 mcd	Yellow	Round with Domed Top	Standard	5 V	4.6 mm	Through Hole	60 °	3 mm	T-1	Yellow	585 nm
Lumex Opto/Components Inc. SSL-LX3044SRD	20 mA	T-1	Diffused	Radial	80 mcd	Red	Round with Domed Top	Standard	1.7 V	4.6 mm	Through Hole	60 °	3 mm	T-1	Red	660 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.31
		10	$ 0.19
		100	$ 0.11
		1000	$ 0.09
		2000	$ 0.08

Description

General part information

SSL-LX3044 Series

Green LED Indication - Discrete 2.2V Radial
