CFTPW-10

Active

Curtis Industries

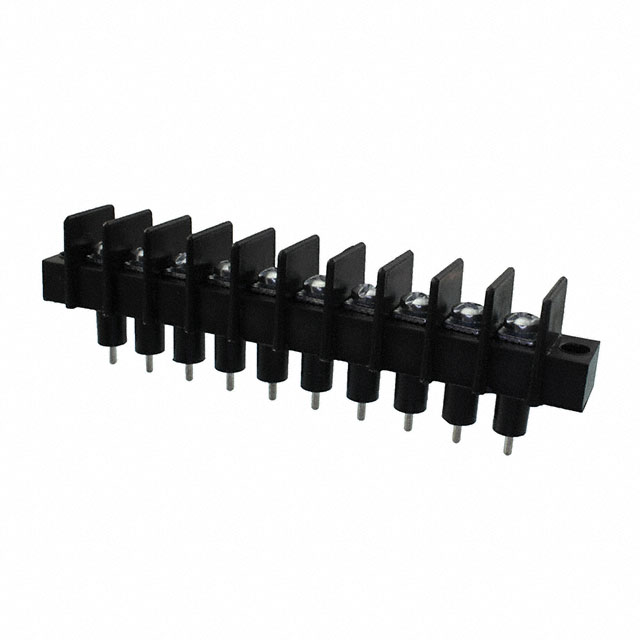

CONN BARRIER STRP 10CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFTPW-10

Active

Curtis Industries

CONN BARRIER STRP 10CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFTPW-10

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin, Insulated
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	10
Number of Rows	1
Number of Wire Entries	10
Operating Temperature	140 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

CFTPW Series

Part	Terminal Block Type	Wire Gauge [Min]	Wire Gauge [Max]	Features	Bottom Termination	Pitch [x]	Pitch [x]	Color	Number of Wire Entries	Top Termination	Mounting Type	Number of Circuits	Number of Rows	Material - Insulation	Current Rating (Amps)	Material Flammability Rating	Operating Temperature	Voltage Rating	Barrier Type
Curtis Industries CFTPW-10	Barrier Block	12 AWG	22 AWG	Flange	PC Pin Insulated	9.53 mm	0.375 in	Black	10	Screws with Captive Plate	Chassis Panel	10	1	Polyester Thermoplastic	20 A	UL94 V-0	140 °C	300 VDC	2 Wall (Dual)
Curtis Industries CFTPW-17	Barrier Block	12 AWG	22 AWG	Flange	PC Pin Insulated	9.53 mm	0.375 in	Black	17	Screws with Captive Plate	Chassis Panel	17	1	Polyester Thermoplastic	20 A	UL94 V-0	140 °C	300 VDC	2 Wall (Dual)
Curtis Industries CFTPW-24	Barrier Block	12 AWG	22 AWG	Flange	PC Pin Insulated	9.53 mm	0.375 in	Black		Screws with Captive Plate	Chassis Panel	24	1	Polyester Thermoplastic	20 A	UL94 V-0	140 °C	300 VDC	2 Wall (Dual)
Curtis Industries CFTPW-16	Barrier Block	12 AWG	22 AWG	Flange	PC Pin Insulated	9.53 mm	0.375 in	Black	16	Screws with Captive Plate	Chassis Panel	16	1	Polyester Thermoplastic	20 A	UL94 V-0	140 °C	300 VDC	2 Wall (Dual)
Curtis Industries CFTPW-13	Barrier Block	12 AWG	22 AWG	Flange	PC Pin Insulated	9.53 mm	0.375 in	Black	13	Screws with Captive Plate	Chassis Panel	13	1	Polyester Thermoplastic	20 A	UL94 V-0	140 °C	300 VDC	2 Wall (Dual)
Curtis Industries CFTPW-18	Barrier Block	12 AWG	22 AWG	Flange	PC Pin Insulated	9.53 mm	0.375 in	Black	18	Screws with Captive Plate	Chassis Panel	18	1	Polyester Thermoplastic	20 A	UL94 V-0	140 °C	300 VDC	2 Wall (Dual)
Curtis Industries CFTPW-21	Barrier Block	12 AWG	22 AWG	Flange	PC Pin Insulated	9.53 mm	0.375 in	Black	21	Screws with Captive Plate	Chassis Panel	21	1	Polyester Thermoplastic	20 A	UL94 V-0	140 °C	300 VDC	2 Wall (Dual)
Curtis Industries CFTPW-19	Barrier Block	12 AWG	22 AWG	Flange	PC Pin Insulated	9.53 mm	0.375 in	Black	19	Screws with Captive Plate	Chassis Panel	19	1	Polyester Thermoplastic	20 A	UL94 V-0	140 °C	300 VDC	2 Wall (Dual)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.12
		10	$ 10.67
		25	$ 10.06

Description

General part information

CFTPW Series

10 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
