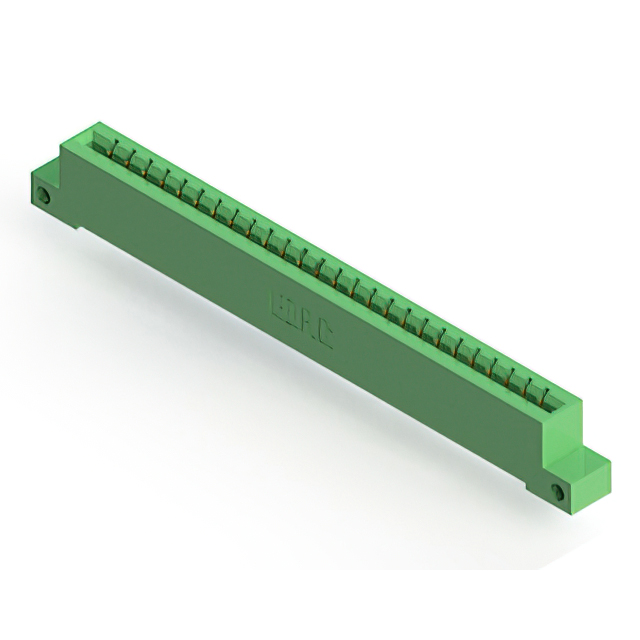

333-026-524-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 26POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-026-524-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 26POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-026-524-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
333-026 Series
...
| Part | Card Type | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Color | Contact Material | Termination | Contact Type | Gender | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Number of Positions | Material - Insulation | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | Copper Alloy | Solder | Cantilever | Female | 13 | 10 Áin | 0.25 Ám | 2 | 2 | Gold | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | Copper Alloy | Solder | Cantilever | Female | 13 | 10 Áin | 0.25 Ám | 2 | 2 | Gold | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | Copper Alloy | Solder | Cantilever | Female | 13 | 10 Áin | 0.25 Ám | 2 | 2 | Gold | -40 °C | 105 ░C | Floating Bobbin Flush Mount | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 0.116 in | 2.95 mm | ||
EDAC Inc. | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | Copper Alloy | Wire Wrap | Cantilever | Female | 13 | 10 Áin | 0.25 Ám | 2 | 2 | Gold | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Green | Copper Alloy | Wire Wrap | Cantilever | Female | 26 | 10 Áin | 0.25 Ám | 1 | 1 | Gold | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 0.128 " | 3.25 mm | ||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Green | Copper Alloy | Solder | Cantilever | Female | 26 | 10 Áin | 0.25 Ám | 1 | 1 | Gold | -40 °C | 105 ░C | Side Mount Opening Unthreaded | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | ||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Green | Copper Alloy | Solder | Cantilever | Female | 26 | 10 Áin | 0.25 Ám | 1 | 1 | Gold | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 0.128 " | 3.25 mm | ||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Green | Copper Alloy | Solder | Cantilever | Female | 26 | 10 Áin | 0.25 Ám | 1 | 1 | Gold | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | Copper Alloy | Solder | Cantilever | Female | 13 | 10 Áin | 0.25 Ám | 2 | 2 | Gold | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | 26 | Polyester Thermoplastic | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | Copper Alloy | Solder Eyelet(s) | Cantilever | Female | 13 | 10 Áin | 0.25 Ám | 2 | 2 | Gold | -40 °C | 105 ░C | 26 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.83 | |
Description
General part information
333-026 Series
26 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
