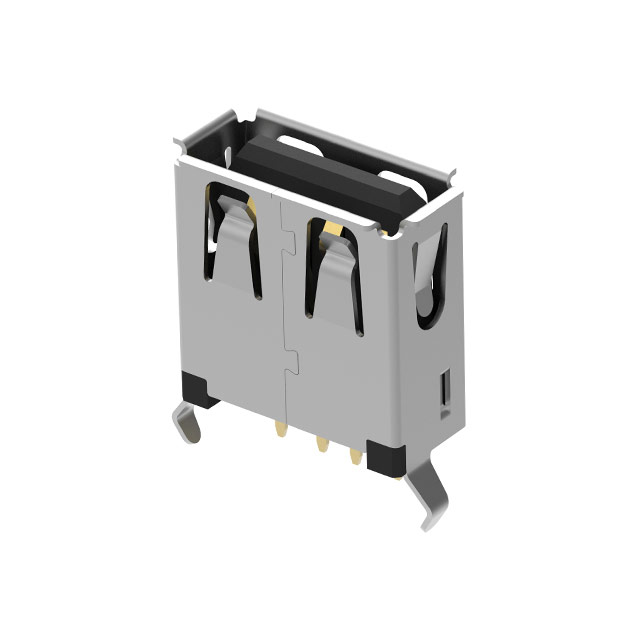

USB1040-GF-L-B
ActiveGCT
USB A SKT, TH, VERTICAL, GF, WIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
USB1040-GF-L-B
ActiveGCT
USB A SKT, TH, VERTICAL, GF, WIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | USB1040-GF-L-B |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.57 | |
| 10 | $ 0.50 | |||
| 25 | $ 0.45 | |||
| 40 | $ 0.43 | |||
| 80 | $ 0.41 | |||
| 230 | $ 0.37 | |||
| 440 | $ 0.36 | |||
| 1000 | $ 0.29 | |||
| 3000 | $ 0.27 | |||
Description
General part information
USB1040 Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole
