SWI5-9-EW-P5
ActiveCUI Inc.

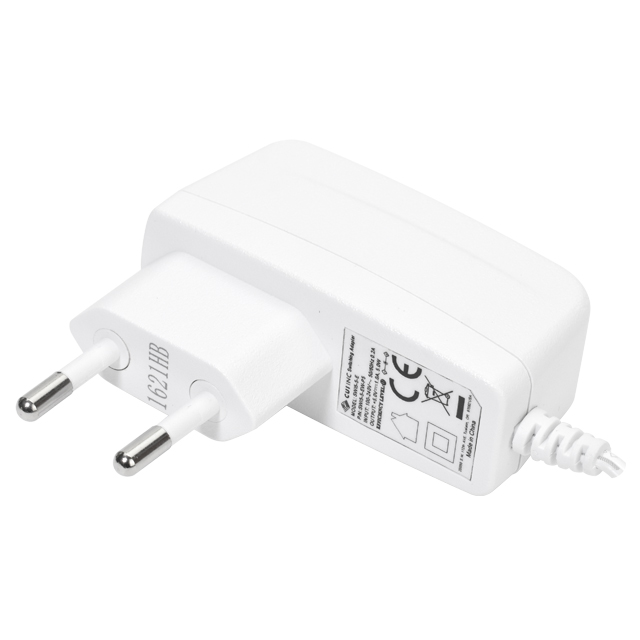

WALL MOUNT AC ADAPTERS AC-DC, 9 VDC, .6 A, SW, WALL-PLUG, EU, P5 CENTER POS PLUG, LEVEL VI, WHITE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SWI5-9-EW-P5
ActiveCUI Inc.
WALL MOUNT AC ADAPTERS AC-DC, 9 VDC, .6 A, SW, WALL-PLUG, EU, P5 CENTER POS PLUG, LEVEL VI, WHITE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SWI5-9-EW-P5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 600 mA |
| Efficiency | 78.35 % |
| Form | Wall Mount (Class II) |
| Input Connector | CEE 7/16 |
| Input Type | Fixed Blade |
| No Load Power Consumption | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 5.4 W |
| Region Utilized | Europe |
| Size / Dimension [x] | 66 mm |
| Size / Dimension [x] | 2.6 in |
| Size / Dimension [y] | 0.98 in |
| Size / Dimension [y] | 25 mm |
| Size / Dimension [z] | 2.8 " |
| Size / Dimension [z] | 71.2 mm |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SWI5-E Series
Wall Mount AC Adapters ac-dc, 9 Vdc, .6 A, SW, wall-plug, EU, P5 center pos plug, level VI, white
