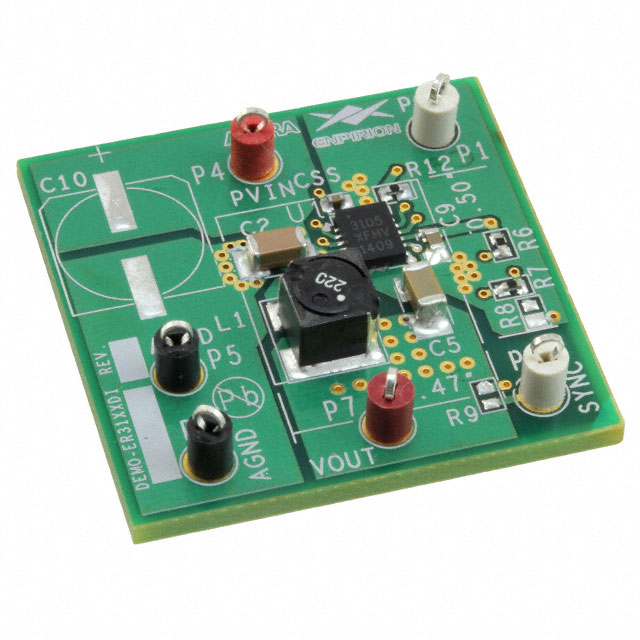

EVB-ER3105DI

Obsolete

Altera

EVAL DC-DC BUCK CONVERTER .5A

Search across all available documentation for this part.

Obsolete

Altera

EVAL DC-DC BUCK CONVERTER .5A

Technical Specifications

Parameters and characteristics for this part

Part	Board Type	Current - Output	Supplied Contents	Utilized IC / Part	Regulator Topology	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Supplier Device Package	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Function	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Synchronous Rectifier	Topology	Output Configuration	Mounting Type	Voltage - Input (Max) [Max]	Frequency - Switching [Max]	Frequency - Switching [Min]	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]
Altera EVB-ER3105DI	Fully Populated	500 mA	Board(s)	ER3105DI	Buck	DC/DC Step Down	3 V	36 V	Non-Isolated	1
Altera ER3105DI		500 mA									12-DFN (4x3)	34 V	0.6 V	Step-Down	Adjustable	-40 °C	125 °C		Buck	Positive	Surface Mount	36 V	2 MHz	300 kHz	1	12-VFDFN Exposed Pad	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.00

General part information

ER3105DI Enpirion® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
