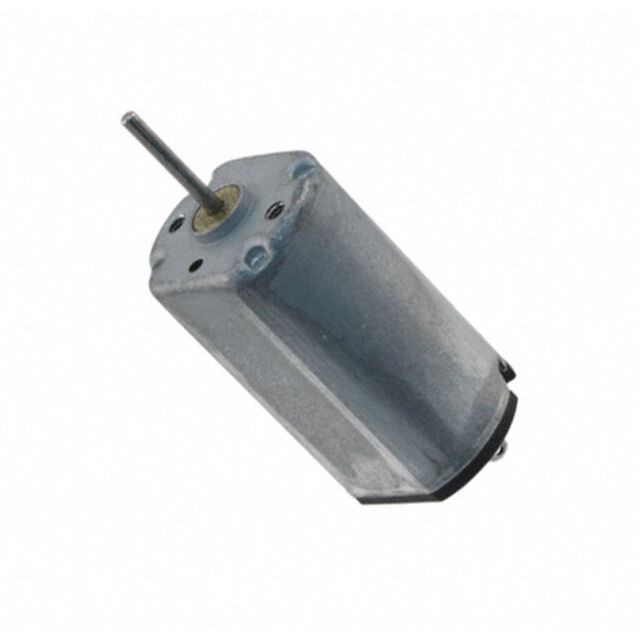

M1N10FB11G
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 13850 RPM 5V
Deep-Dive with AI
Search across all available documentation for this part.
M1N10FB11G
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 13850 RPM 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1N10FB11G |
|---|---|
| Diameter - Shaft [diameter] | 0.039 in |
| Diameter - Shaft [diameter] | 1 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 0.366 in |
| Length - Shaft and Bearing [x] | 9.3 mm |
| Motor Type | Brushed |
| RPM | 13850 RPM |
| Size / Dimension | Round |
| Size / Dimension | 12 mm |
| Size / Dimension | 0.472 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.042 oz-in |
| Torque - Rated (oz-in / mNm) | 0.3 mNm |
| Type | DC Motor |
| Voltage - Rated | 5 V |
| Weight | 0.039 lb |
| Weight | 17.69 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.78 | |
| 5 | $ 3.48 | |||
| 10 | $ 3.35 | |||
| 25 | $ 3.20 | |||
| 50 | $ 3.08 | |||
| 100 | $ 2.97 | |||
| 250 | $ 2.83 | |||
| 500 | $ 2.73 | |||
| 1000 | $ 2.63 | |||
Description
General part information
M1N10FB11 Series
Brushed DC Motor Standard 13850 RPM 5VDC
