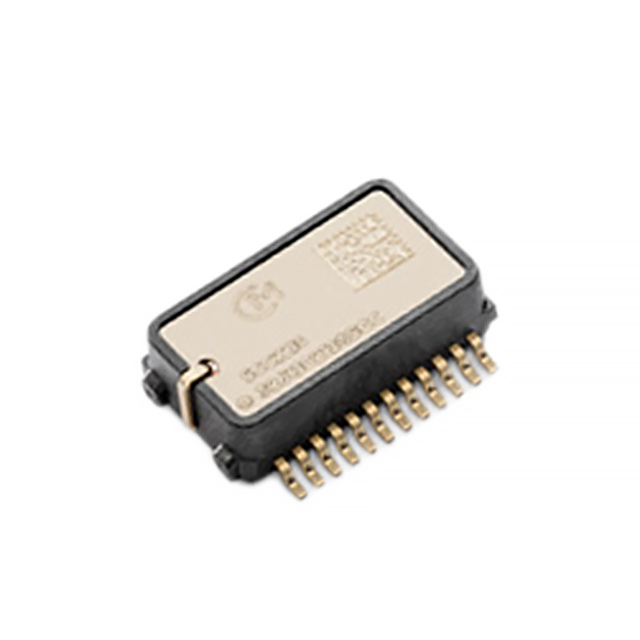

SCR2100-D08-05
ActiveMurata Power Solutions Inc.
GYROSCOPES
Deep-Dive with AI
Search across all available documentation for this part.
SCR2100-D08-05
ActiveMurata Power Solutions Inc.
GYROSCOPES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCR2100-D08-05 |
|---|---|
| Axis | X (Pitch) |
| Bandwidth | 1.15 kHz |
| Current - Supply | 23.9 mA |
| Features | Temperature Sensor |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | SPI |
| Package / Case | 24-SMD Module |
| Range °/s [Max] | 125 °/s |
| Range °/s [Min] | -125 °/s |
| Sensitivity (LSB/(°/s)) | 50 LSB/(°/s) |
| Type | Digital |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 73.22 | |
| 5 | $ 61.75 | |||
| 10 | $ 57.39 | |||
| 25 | $ 52.10 | |||
| Digi-Reel® | 1 | $ 73.22 | ||
| 5 | $ 61.75 | |||
| 10 | $ 57.39 | |||
| 25 | $ 52.10 | |||
| Tape & Reel (TR) | 50 | $ 48.42 | ||
| 100 | $ 45.00 | |||
| 150 | $ 43.12 | |||
Description
General part information
SCR2100 Series
Gyroscope X (Pitch) ±125 1.15kHz SPI 24-SMD
Documents
Technical documentation and resources
No documents available
