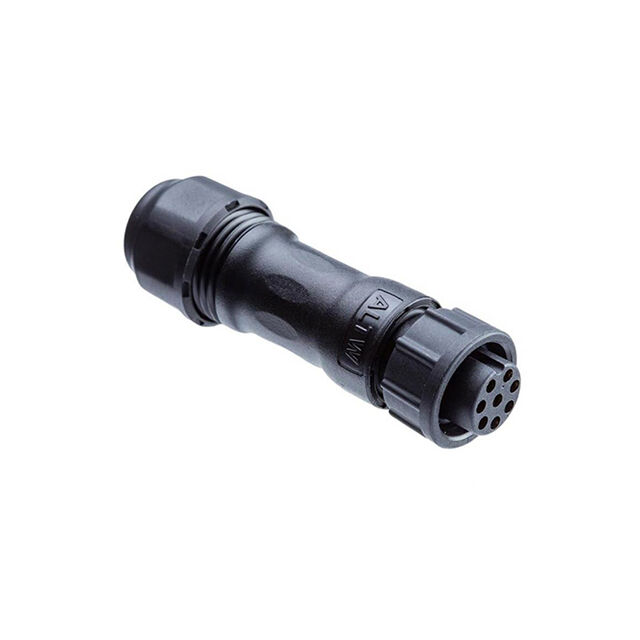

ACB-05BFMC-LL7AP0

Active

Amphenol LTW

F, M, CRIMP, 2LOCK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACB-05BFMC-LL7AP0

Active

Amphenol LTW

F, M, CRIMP, 2LOCK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACB-05BFMC-LL7AP0

Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 VDC

ACB-05BFMC Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Ingress Protection	Orientation	Current Rating (Amps)	Material Flammability Rating	Shell Size - Insert	Insert Material	Color	Shielding	Number of Positions	Voltage Rating	Contact Material	Primary Material	Contact Finish - Mating	Features	Mounting Type	Shell Material	Termination	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Amphenol LTW ACB-05BFMC-LL7AP0	-40 °C	105 ░C	Male Pins Plug	IP67 - Dust Tight Waterproof	Keyed	10 A	UL94 V-0	C	Polyamide (PA) Nylon Glass Filled	Black	Unshielded	5	250 VDC	Copper Alloy	Plastic	Gold	Backshell	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp
Amphenol LTW ACB-05BFMC-SL7AP0	-40 °C	105 ░C	Male Pins Plug	IP67 - Dust Tight Waterproof	Keyed	10 A	UL94 V-0	C	Polyamide (PA) Nylon Glass Filled	Black	Unshielded	5	250 VDC	Copper Alloy	Plastic	Gold	Backshell	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp
Amphenol LTW ACB-05BFMC-LL7LP0	-40 °C	105 ░C	Male Pins Plug	IP67 - Dust Tight Waterproof	Keyed	10 A	UL94 V-0	C	Polyamide (PA) Nylon Glass Filled	Black	Unshielded	5	250 VDC	Copper Alloy	Plastic	Gold	Backshell	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Glass Filled Nylon Polyamide (PA)	10 mm 12 mm	0.394 in 0.472 in
Amphenol LTW ACB-05BFMC-LL7SP0	-40 °C	105 ░C	Male Pins Plug	IP67 - Dust Tight Waterproof	Keyed	10 A	UL94 V-0	C	Polyamide (PA) Nylon Glass Filled	Black	Unshielded	5	250 VDC	Copper Alloy	Plastic	Gold	Backshell	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Glass Filled Nylon Polyamide (PA)			8 mm	6 mm	0.315 in	0.236 in
Amphenol LTW ACB-05BFMC-LL7MP0	-40 °C	105 ░C	Male Pins Plug	IP67 - Dust Tight Waterproof	Keyed	10 A	UL94 V-0	C	Polyamide (PA) Nylon Glass Filled	Black	Unshielded	5	250 VDC	Copper Alloy	Plastic	Gold	Backshell	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Glass Filled Nylon Polyamide (PA)			10 mm	8 mm	0.394 in	0.315 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.29

Description

General part information

ACB-05BFMC Series

5 (Data) Position Circular Connector Plug, Male Pins Crimp
