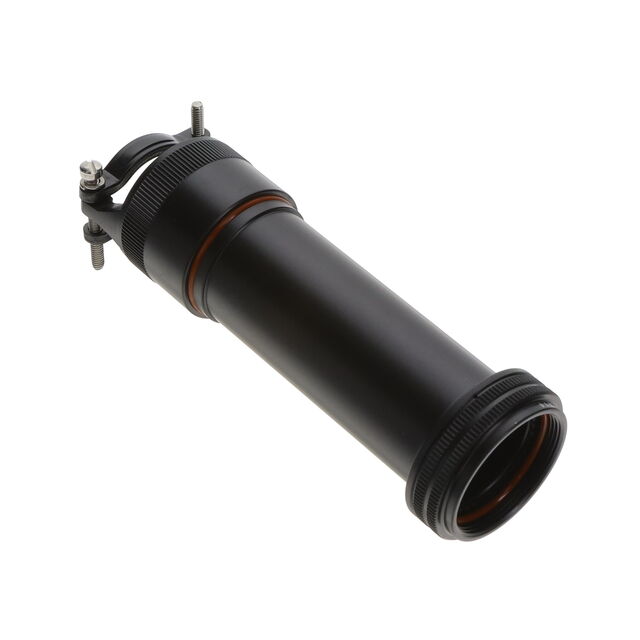

M85049/1821Z07B

Active

Amphenol Interconnect India

CONN BACKSHELL W/CLMP SZ21 G BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M85049/1821Z07B

Active

Amphenol Interconnect India

CONN BACKSHELL W/CLMP SZ21 G BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/1821Z07B

Cable Exit	180 °
Cable Opening [Max] [custom]	0.88 in
Cable Opening [Max] [custom]	22.35 mm
Cable Opening [Min] [custom]	19.05 mm
Cable Opening [Min] [custom]	0.75 in
Color	Black
Diameter - Outside [diameter]	39.37 mm
Diameter - Outside [diameter]	1.55 in
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Zinc Cobalt
Shell Size - Insert	21
Shell Size - Insert	G
Shielding	Shielded
Type	Backshell, Cable Clamp

M85049/18 Series

...

Part	Ingress Protection	For Use With/Related Products	Cable Exit	Features	Shielding	Shell Size - Insert	Shell Size - Insert	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Material	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Plating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/1825Z08	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	J	25	0.88 in	1 in	25.4 mm	22.35 mm	Aluminum Alloy	Backshell Cable Clamp	1.85 "	46.99 mm	Black	Zinc Cobalt
Amphenol Interconnect India M85049/1813W02	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	C	13	0.125 in	0.25 in	6.35 mm	3.18 mm	Aluminum Alloy	Backshell Cable Clamp	1 in	25.4 mm	Olive Drab	Cadmium
Amphenol Interconnect India M85049/1819Z03A	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	F	19					Aluminum Alloy	Backshell Cable Clamp	1.4 in	35.56 mm	Black	Zinc Cobalt	0.38 in	0.25 in	9.65 mm	6.35 mm
Amphenol Interconnect India M85049/1817Z04A	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	17 E						Aluminum Alloy	Backshell Cable Clamp	1.25 in	31.75 mm	Black	Zinc Cobalt					9.65 mm 12.7 mm	0.38 in 0.5 in
Amphenol Interconnect India M85049/1817Z04	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	17 E						Aluminum Alloy	Backshell Cable Clamp	1.25 in	31.75 mm	Black	Zinc Cobalt	0.5 in	0.38 in	12.7 mm	9.65 mm
Amphenol Interconnect India M85049/1821Z07B	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	G	21					Aluminum Alloy	Backshell Cable Clamp	1.55 in	39.37 mm	Black	Zinc Cobalt	0.88 in	0.75 in	22.35 mm	19.05 mm
Amphenol Interconnect India M85049/1823Z07A	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	H	23					Aluminum Alloy	Backshell Cable Clamp	1.65 "	41.91 mm	Black	Zinc Cobalt
Amphenol Interconnect India M85049/1823Z05A	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	H	23					Aluminum Alloy	Backshell Cable Clamp	1.65 "	41.91 mm	Black	Zinc Cobalt	0.63 in	0.5 in	16 mm	12.7 mm
Amphenol Interconnect India M85049/1825Z09A	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	J	25					Aluminum Alloy	Backshell Cable Clamp	1.85 "	46.99 mm	Black	Zinc Cobalt					25.4 mm 28.7 mm	1 in 1.13 in
Amphenol Interconnect India M85049/1819Z05A	Environment Resistant	MIL-DTL-38999 Series III IV	180 °	Clamp Screws	Shielded	F	19					Aluminum Alloy	Backshell Cable Clamp	1.4 in	35.56 mm	Black	Zinc Cobalt					12.7 mm 16 mm	0.5 in 0.63 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 94.29
		10	$ 73.34
		25	$ 66.71

Description

General part information

M85049/18 Series

Black Connector Backshell, Cable Clamp 21, G
