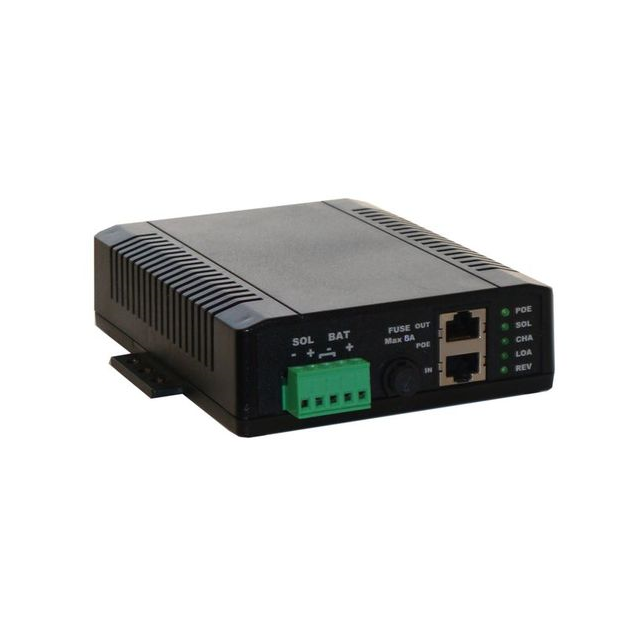

TP-SCPOE-2448-HP
ActiveTycon Systems Inc.
BATT CHG SOLAR 48V/20V-25V 1.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TP-SCPOE-2448-HP |
|---|---|
| Battery Cell Size | 24 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max | 1.5 A |
| Features | LED Indicator |
| Mounting Type | Desktop |
| Number of Cells | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Max [Max] | 60 W |
| Termination Style | Terminal Block |
| Type | Solar Charger |
| Voltage - Input [Max] | 55 V |
| Voltage - Input [Min] | 30 V |
| Voltage - Nominal | 48 V |
| Voltage - Nominal [Max] | 25 V |
| Voltage - Nominal [Min] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 130.81 | |
| 5 | $ 128.70 | |||
| 20 | $ 126.59 | |||
| 40 | $ 122.37 | |||
| 60 | $ 118.15 | |||
Description
General part information
TP-SCPOE Series
Solar Charger Battery Charger 48V, 20V ~ 25V 1.5A 24V
