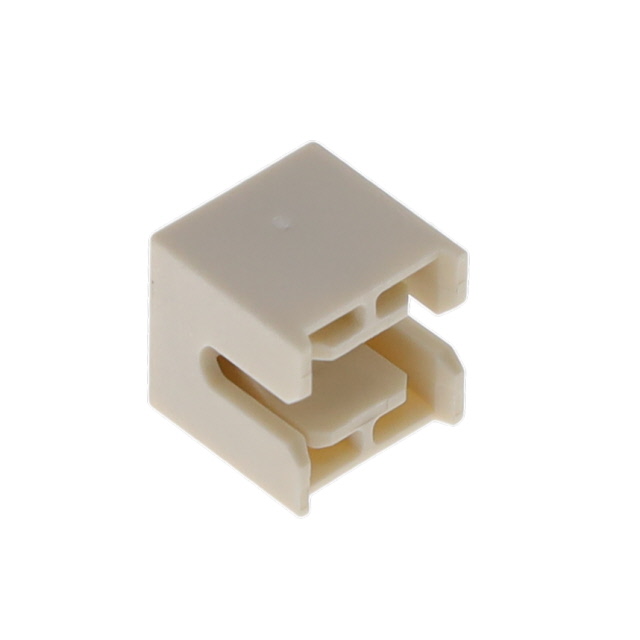

609177001522100

Active

Kyocera AVX

TERMINATION CAP 9177-500 SERIES

Search across all available documentation for this part.

Active

Kyocera AVX

TERMINATION CAP 9177-500 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	609177001522100

Accessory Type	Cap (Cover), Terminating
Features	16 AWG
For Use With/Related Products	9177-500 Series Contacts

Part	For Use With/Related Products	Material	Accessory Type	Specifications	Color	Features	Number of Positions	Features
Kyocera AVX 609177003035199	9177 Series Contacts IDC	Polyamide (PA46) Nylon 4/6	Cap (Cover)	3 Positions Wire Stop	White
Kyocera AVX 609177001522100	9177-500 Series Contacts		Cap (Cover) Terminating			16 AWG
Kyocera AVX 609177001519100	9177-500 Series Contacts		Cap (Cover) Terminating			18 AWG
Kyocera AVX 609177001027199	9177 Series Contacts IDC	Polyamide (PA46) Nylon 4/6	Cap (Cover)	1 Position Wire Stop	White
Kyocera AVX 609177001531100	9177-500 Series Contacts		Cap (Cover) Terminating			12 AWG
Kyocera AVX 609177002042100	9177 Series Contacts IDC	Polyamide (PA46) Nylon 4/6	Cap (Cover)	2 Positions Through Wire	White
Kyocera AVX 609177001027100	9177 Series Contacts IDC	Polyamide (PA46) Nylon 4/6	Cap (Cover)	1 Position Through Wire	White
Kyocera AVX 609177002035099	9177 Series Contacts IDC	Polyamide (PA46) Nylon 4/6	Cap (Cover)	2 Positions Wire Stop	Black
Kyocera AVX 609177003042199	9177 Series Contacts IDC	Polyamide (PA46) Nylon 4/6	Cap (Cover)	3 Positions Wire Stop	White
Kyocera AVX 609177001635100	9177-600 Series Contacts		Cap (Cover)				1	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover), Terminating For 9177-500 Series Contacts
