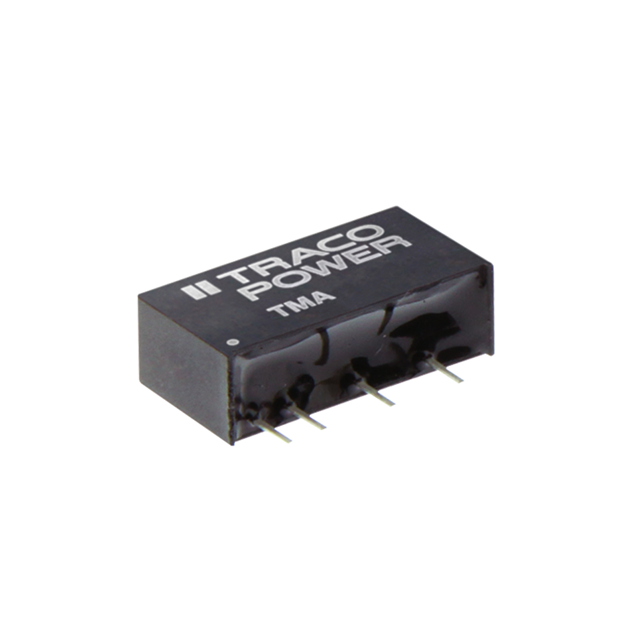

TMA 1505S
ActiveTraco Power
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMA 1505S
ActiveTraco Power
DC DC CONVERTER 5V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMA 1505S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 72 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module, 4 Leads |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [y] | 6.1 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 16.5 V |
| Voltage - Input (Min) [Min] | 13.5 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.11 | |
| 10 | $ 4.96 | |||
| 25 | $ 4.82 | |||
| 50 | $ 4.67 | |||
| 100 | $ 4.52 | |||
| 250 | $ 4.38 | |||
| 500 | $ 4.09 | |||
Description
General part information
TMA 1505 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 13.5V - 16.5V Input
