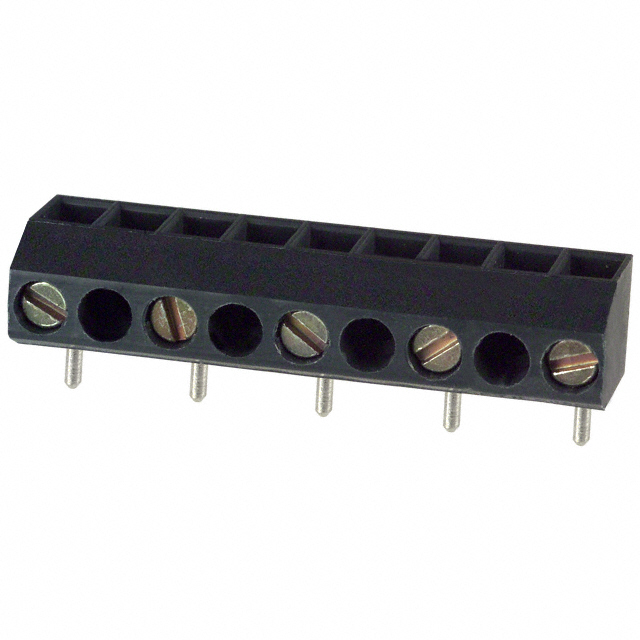

ED650/5DS

Active

On Shore Technology Inc.

TERM BLK 5POS TOP ENTRY 7MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 5POS TOP ENTRY 7MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED650/5DS

Clamp Material - Plating	Copper Tin Alloy
Color	Gray
Contact Material - Plating [custom]	Brass
Current	6 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Positions Per Level	5
Screw Thread	M2
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screw

Part	Wire Gauge [Max]	Wire Gauge [Min]	Screw Thread	Clamp Material - Plating	Torque - Screw	Torque - Screw	Positions Per Level	Current	Number of Levels	Mounting Type	Mating Orientation	Contact Material - Plating [custom]	Wire Termination	Color	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]
On Shore Technology Inc. ED650/5DS	28 AWG	16 AWG	M2	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	5	6 A	1	Through Hole	Vertical with Board	Brass	Screw	Gray	Polyamide (PA) Nylon	-30 ░C	105 ░C
On Shore Technology Inc. ED650/4DS	28 AWG	16 AWG	M2	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	4	6 A	1	Through Hole	Vertical with Board	Brass	Screw	Gray	Polyamide (PA) Nylon	-30 ░C	105 ░C
On Shore Technology Inc. ED650/6DS	28 AWG	16 AWG	M2	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	6	6 A	1	Through Hole	Vertical with Board	Brass	Screw	Gray	Polyamide (PA) Nylon	-30 ░C	105 ░C
On Shore Technology Inc. ED650/2DS	28 AWG	16 AWG	M2	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	2	6 A	1	Through Hole	Vertical with Board	Brass	Screw	Gray	Polyamide (PA) Nylon	-30 ░C	105 ░C
On Shore Technology Inc. ED650/3DS	28 AWG	16 AWG	M2	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	3	6 A	1	Through Hole	Vertical with Board	Brass	Screw	Gray	Polyamide (PA) Nylon	-30 ░C	105 ░C
On Shore Technology Inc. ED650/8DS	28 AWG	16 AWG	M2	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	8	6 A	1	Through Hole	Vertical with Board	Brass	Screw	Gray	Polyamide (PA) Nylon	-30 ░C	105 ░C
On Shore Technology Inc. ED650/7DS	28 AWG	16 AWG	M2	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	7	6 A	1	Through Hole	Vertical with Board	Brass	Screw	Gray	Polyamide (PA) Nylon	-30 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.28

General part information

5 Position Wire to Board Terminal Block Vertical with Board 0.276" (7.00mm) Through Hole
