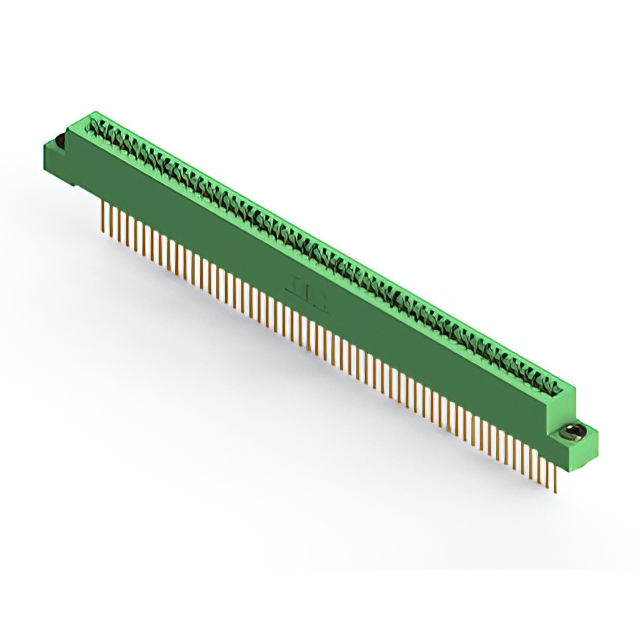

342-056-541-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 56POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-056-541-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 56POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-056-541-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 56 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
342-056 Series
...
| Part | Contact Type | Number of Positions | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Read Out | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Gender | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Pitch [x] | Pitch [x] | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Card Type | Termination Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 56 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 28 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole Right Angle | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Non Specified - Dual Edge | 2 | |
EDAC Inc. | Cantilever | 56 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 28 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole Right Angle | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Non Specified - Dual Edge | 2 | |||
EDAC Inc. | Cantilever | 56 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 28 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Board Edge Straddle Mount | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | 2 | Card Extender | |||
EDAC Inc. | Cantilever | 56 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | 56 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | Non Specified - Single Edge | 1 | |
EDAC Inc. | Cantilever | 56 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 28 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | Non Specified - Dual Edge | 2 | |
EDAC Inc. | Cantilever | 56 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 28 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | 2 | ||||
EDAC Inc. | Cantilever | 56 | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 28 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Board Edge Straddle Mount | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Gold | Non Specified - Dual Edge | 2 | Card Extender | ||
EDAC Inc. | Cantilever | 56 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | 56 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Non Specified - Single Edge | 1 | |||
EDAC Inc. | Cantilever | 56 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 28 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | 2 | ||||
EDAC Inc. | Cantilever | 56 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 28 | 10 Áin | 0.25 Ám | Copper Alloy | Female | Through Hole | -40 °C | 105 ░C | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Gold | Non Specified - Dual Edge | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 25.62 | |
Description
General part information
342-056 Series
56 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
