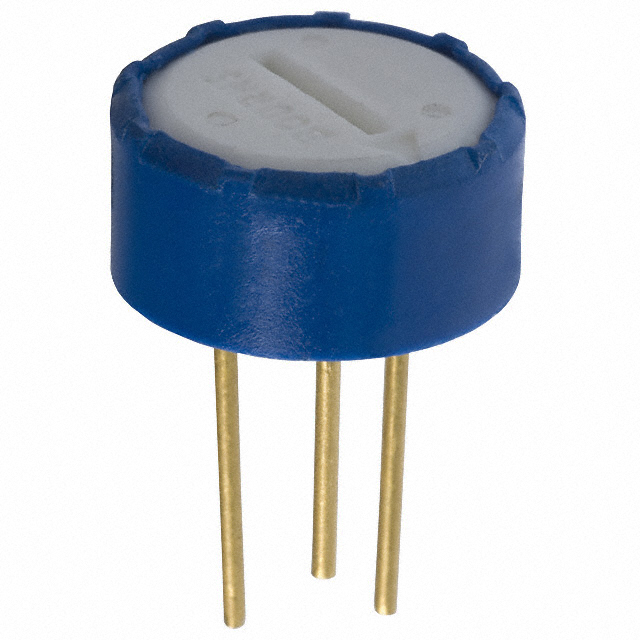

3345P-1-501T

Active

Bourns Inc.

THUMBWHEEL POT 500 OHM 1W TOP

Search across all available documentation for this part.

Active

Bourns Inc.

THUMBWHEEL POT 500 OHM 1W TOP

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Number of Turns	Tolerance	Power (Watts)	Mounting Type	Resistance	Adjustment Type	Termination	Resistive Material	Temperature Coefficient	Termination Style
Bourns Inc. 3345P-1-500T	12.57 mm	8 mm	0.495 in	0.315 "	1	5 %	1 W	Through Hole	50 Ohms	Top Adjustment	PC Pins
Bourns Inc. 3345P-1-501T	12.57 mm	8 mm	0.495 in	0.315 "	1	5 %	1 W	Through Hole	500 Ohms	Top Adjustment	PC Pins
Bourns Inc. 3345P-1-200T	12.57 mm	8 mm	0.495 in	0.315 "	1	5 %	1 W	Through Hole	20 Ohms	Top Adjustment	PC Pins
Bourns Inc. 3345P-1-200	11.43 mm		0.45 "		1	5 %	1 W	Through Hole	20 Ohms	Top Adjustment		Wirewound	50 ppm/°C	PC Pins
Bourns Inc. 3345P-1-300	11.43 mm		0.45 "		1	5 %	1 W	Through Hole	30 Ohms	Top Adjustment		Wirewound	50 ppm/°C	PC Pins
Bourns Inc. 3345P-1-100T	12.57 mm	8 mm	0.495 in	0.315 "	1	5 %	1 W	Through Hole	10 Ohms	Top Adjustment	PC Pins
Bourns Inc. 3345P-1-253	11.43 mm		0.45 "		1	5 %	1 W	Through Hole	25 kOhms	Top Adjustment		Wirewound	50 ppm/°C	PC Pins
Bourns Inc. 3345P-1-103T	12.57 mm	8 mm	0.495 in	0.315 "	1	5 %	1 W	Through Hole	10000 Ohms	Top Adjustment	PC Pins
Bourns Inc. 3345P-1-251	11.43 mm		0.45 "		1	5 %	1 W	Through Hole	250 Ohms	Top Adjustment		Wirewound	50 ppm/°C	PC Pins
Bourns Inc. 3345P-1-203	11.43 mm		0.45 "		1	5 %	1 W	Through Hole	20 kOhms	Top Adjustment		Wirewound	50 ppm/°C	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

500 Ohms 1W Through Hole Thumbwheel Potentiometer Top Adjustment
