ER503_R2_00001

Active

Panjit International Inc.

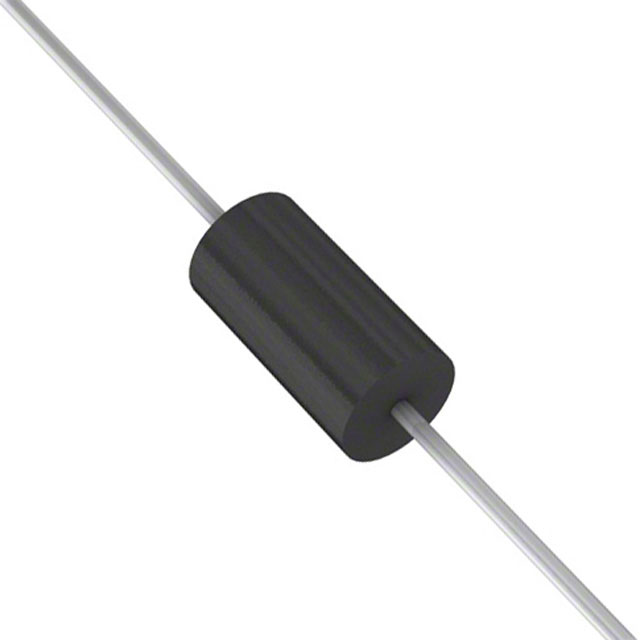

DIODE STANDARD 300V 5A DO201AD

Search across all available documentation for this part.

Active

Panjit International Inc.

DIODE STANDARD 300V 5A DO201AD

Technical Specifications

Parameters and characteristics for this part

Specification	ER503_R2_00001

Capacitance @ Vr, F	65 pF
Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-201AD, Axial
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-201AD
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

Part	Package / Case	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Speed	Technology	Voltage - DC Reverse (Vr) (Max) [Max]
Panjit International Inc. ER503_R2_00001	DO-201AD Axial	65 pF	1.25 V	Through Hole	DO-201AD	150 °C	-55 °C	1 µA	5 A	35 ns	200 mA 500 ns	Standard	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 300 V 5A Through Hole DO-201AD
