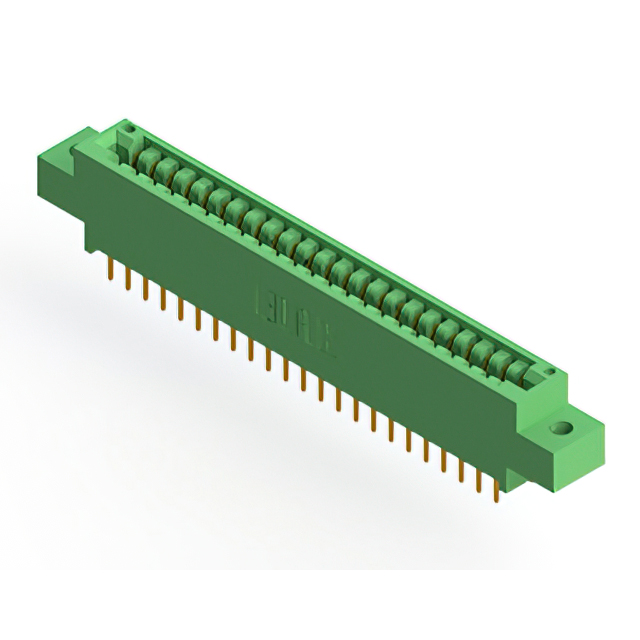

346-046-521-802
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 46POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-046-521-802
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 46POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-046-521-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 46 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-046 Series
...
| Part | Contact Material | Color | Contact Finish | Number of Positions/Bay/Row [custom] | Termination | Termination Rows | Flange Feature | Flange Feature | Card Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Pitch [x] | Pitch [x] | Contact Type | Number of Rows | Number of Positions | Mounting Type | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Green | Gold | 23 | Solder | 2 | 3.25 mm | 0.128 in | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.125 in | 3.18 mm | Cantilever | 2 | 46 | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Copper Alloy | Green | Gold | 46 | Solder Eyelet(s) | 1 | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.125 in | 3.18 mm | Cantilever | 1 | 46 | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Copper Alloy | Green | Gold | 46 | Solder Wire Wrap | 1 | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.125 in | 3.18 mm | Cantilever | 1 | 46 | Through Hole Right Angle | Polyester Thermoplastic | 10 Áin | 0.25 Ám | ||||||
EDAC Inc. | Copper Alloy | Green | Gold | 23 | Solder | 2 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.125 in | 3.18 mm | Cantilever | 2 | 46 | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Copper Alloy | Green | Gold | 46 | Solder Wire Wrap | 1 | Non Specified - Single Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.125 in | 3.18 mm | Cantilever | 1 | 46 | Through Hole Right Angle | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Copper Alloy | Green | Gold | 23 | Solder | 2 | 3.25 mm | 0.128 in | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.125 in | 3.18 mm | Cantilever | 2 | 46 | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Copper Alloy | Green | Gold | 23 | Solder | 2 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.125 in | 3.18 mm | Cantilever | 2 | 46 | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Copper Alloy | Green | Gold | 23 | Solder Wire Wrap | 2 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.125 in | 3.18 mm | Cantilever | 2 | 46 | Through Hole Right Angle | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Copper Alloy | Green | Gold | 23 | Solder | 2 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.125 in | 3.18 mm | Cantilever | 2 | 46 | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Copper Alloy | Green | Gold | 23 | Solder Eyelet(s) | 2 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.125 in | 3.18 mm | Cantilever | 2 | 46 | Board Edge Straddle Mount | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.26 | |
Description
General part information
346-046 Series
46 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
