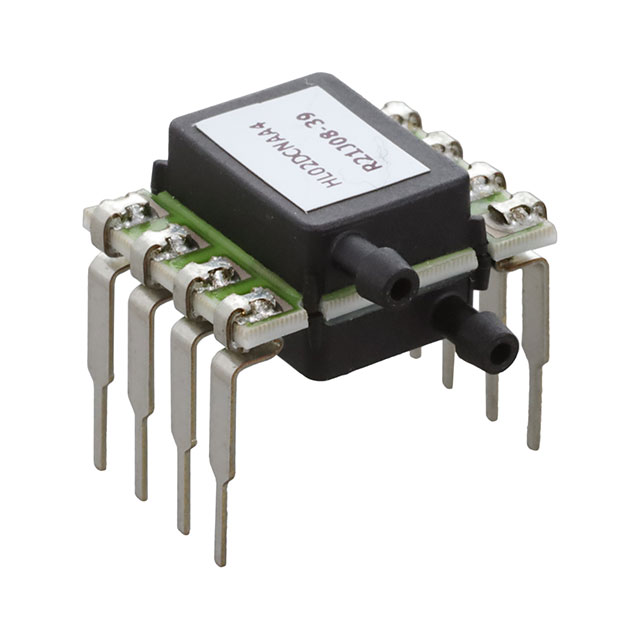

ELVH-L02D-HRRD-C-NAA4

Active

Amphenol All Sensors Corporation

SENSOR 0.07PSID 0.06" 8DIP

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.07PSID 0.06" 8DIP

Technical Specifications

Parameters and characteristics for this part

Part	Operating Pressure	Operating Pressure	Features	Maximum Pressure	Maximum Pressure	Termination Style	Accuracy	Pressure Type	Port Size	Port Size	Port Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Package / Case	Output Type	Port Style	Output	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol All Sensors Corporation ELVH-L02D-HRRD-C-NAA4	0.07 PSI	0.5 kPa	Temperature Compensated	9.72 PSI	67 kPa	PC Pin	0.25 %	Differential	Dual Male Tube	0.06 "	1.6 mm	2.7 V	5.5 V	Through Hole	8-DIP	8-DIP Dual Ports Same Side	12.8 mm	0.504 in	Analog Voltage	Barbed
Amphenol All Sensors Corporation ELVH-L02D-HRRD-C-N2A5	0.07 PSI	0.5 kPa	Temperature Compensated	9.72 PSI	67 kPa	PC Pin	0.25 %	Differential	Dual Male Tube	0.06 "	1.6 mm	2.7 V	5.5 V	Through Hole	8-DIP	8-DIP Dual Ports Same Side	12.8 mm	0.504 in	I2C	Barbed	14 b
Amphenol All Sensors Corporation ELVH-L02D-HRRD-I-NAA4	0.07 PSI	0.5 kPa	Temperature Compensated	9.72 PSI	67 kPa	PC Pin	0.25 %	Differential	Dual Male Tube	0.06 "	1.6 mm	2.7 V	5.5 V	Through Hole	8-DIP	8-DIP Dual Ports Same Side	12.8 mm	0.504 in	Analog Voltage	Barbed		85 °C	-20 C
Amphenol All Sensors Corporation ELVH-L02D-HRRD-C-NSA4	0.07 PSI	0.5 kPa	Temperature Compensated	9.72 PSI	67 kPa	PC Pin	0.25 %	Differential	Dual Male Tube	0.06 "	1.6 mm	2.7 V	5.5 V	Through Hole	8-DIP	8-DIP Dual Ports Same Side	12.8 mm	0.504 in	SPI	Barbed	14 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 0.07PSI (0.5kPa) Differential Male - 0.06" (1.6mm) Tube, Dual 8-DIP (0.504", 12.80mm), Dual Ports, Same Side
