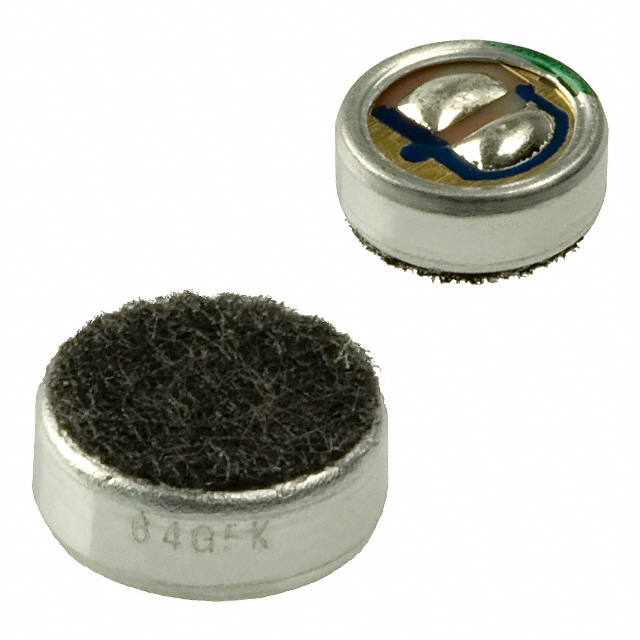

WM-64K

Obsolete

Panasonic Industrial Automation Sales

MIC COND ANLG OMNI -45DB 0.236"D

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

MIC COND ANLG OMNI -45DB 0.236"D

Technical Specifications

Parameters and characteristics for this part

Part	Impedance	Current - Supply	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Direction	S/N Ratio	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Sensitivity	Termination	Output Type	Shape	Port Location	Height (Max) [Max]	Height (Max) [Max]	Frequency Range [Max]	Frequency Range [Min]	Height (Max)	Height (Max) [Max] [z]
Panasonic Industrial Automation Sales WM-64K	2.2 kOhms	500 µA	2 VDC	2 V	10 V	Omnidirectional	58 dB	Electret Condenser	6 mm	0.236 in	-45 dB	Solder Pads	Analog	Circular	Top	0.087 in	2.2 mm	15 kHz	50 Hz
Panasonic Industrial Automation Sales WM-64C	2.2 kOhms	500 µA	2 VDC	2 V	10 V	Omnidirectional	58 dB	Electret Condenser	6 mm	0.236 in	-45 dB	Solder Pads	Analog	Circular	Top	0.087 in	2.2 mm	15 kHz	50 Hz
Panasonic Industrial Automation Sales WM-64MNT330A	2.2 kOhms	500 µA	2 VDC	2 V	10 V	Omnidirectional	58 dB	Electret Condenser	7.7 mm	0.303 in	-44 dB	Pressure Contact	Analog	Circular	Top			16 kHz	20 Hz	4 mm	0.157 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Hz ~ 15 kHz Analog Microphone Electret Condenser 2 V ~ 10 V Omnidirectional (-45dB ±4dB @ 94dB SPL) Solder Pads
