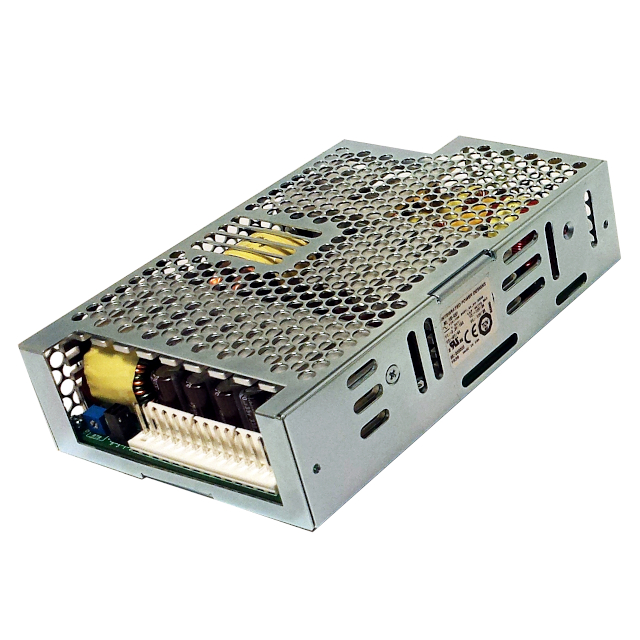

1010519CHCO

Active

Integrated Power Designs

REL-150-1005 CHCO

Search across all available documentation for this part.

Active

Integrated Power Designs

REL-150-1005 CHCO

Technical Specifications

Parameters and characteristics for this part

Specification	1010519CHCO

Applications	Industrial, Laboratory, Medical, ITE (Commercial)
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	10 A
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	150 W
Size / Dimension [x]	6.25 "
Size / Dimension [x]	156.8 mm
Size / Dimension [y]	3.96 in
Size / Dimension [y]	100.5 mm
Size / Dimension [z]	37.6 mm
Size / Dimension [z]	1.48 "
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Output 1	15 V

Part	Applications	Type	Power (Watts)	Voltage - Output 1	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Standard Number	Mounting Type	Features	Approval Agency
Integrated Power Designs 1010519CHCO	Industrial ITE (Commercial) Laboratory Medical	Enclosed	150 W	15 V	10 A	70 °C	0 °C	3.96 in	6.25 "	37.6 mm	156.8 mm	1.48 "	100.5 mm	1	60601-1 62368-1	Chassis Mount	Adjustable Output Remote Sense Universal Input	CE cURus TUV UKCA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
