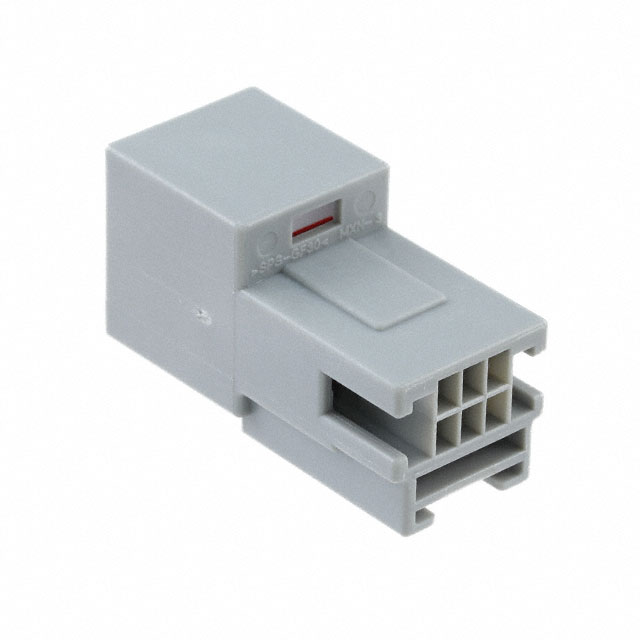

0309681060

Active

Molex

CONN PLUG HSG 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0309681060

Active

Molex

CONN PLUG HSG 6POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0309681060

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

030968 Series

Part	Features	Connector Type	Fastening Type	Note	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Row Spacing [x]	Row Spacing	Contact Type	Contact Termination	Number of Positions
Molex 0309681247	Terminal Position Lock (TPA)	Plug	Latch Lock	Contacts Not Included	24	100 °C	-40 °C	Gray	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp
Molex 0309681060	Terminal Position Lock (TPA)	Plug	Latch Lock	Contacts Not Included	6	100 °C	-40 °C	Gray	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp
Molex 0309681168	Terminal Position Lock (TPA)	Plug	Latch Lock	Contacts Not Included		100 °C	-40 °C	Black	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp	16
Molex 0309681169	Terminal Position Lock (TPA)	Plug	Latch Lock	Contacts Not Included		100 °C	-40 °C	Natural	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp	16
Molex 0309681129	Terminal Position Lock (TPA)	Plug	Latch Lock	Contacts Not Included	12	100 °C	-40 °C	Natural	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp
Molex 0309681101	Terminal Position Lock (TPA)	Plug	Latch Lock		10	100 °C	-40 °C	Black	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp
Molex 0309681208	Terminal Position Lock (TPA)	Plug	Latch Lock	Contacts Not Included	20	100 °C	-40 °C	Black	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp
Molex 0309681100	Terminal Position Lock (TPA)	Plug	Latch Lock	Contacts Not Included	10	100 °C	-40 °C	Gray	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp
Molex 0309681127	Terminal Position Lock (TPA)	Plug	Latch Lock	Contacts Not Included	12	100 °C	-40 °C	Gray	Free Hanging (In-Line)	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Male Pin	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.40
		10	$ 2.05
		100	$ 1.69
		1500	$ 1.29
		6000	$ 1.18

Description

General part information

030968 Series

6 Rectangular Connectors - Housings Plug Gray 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
