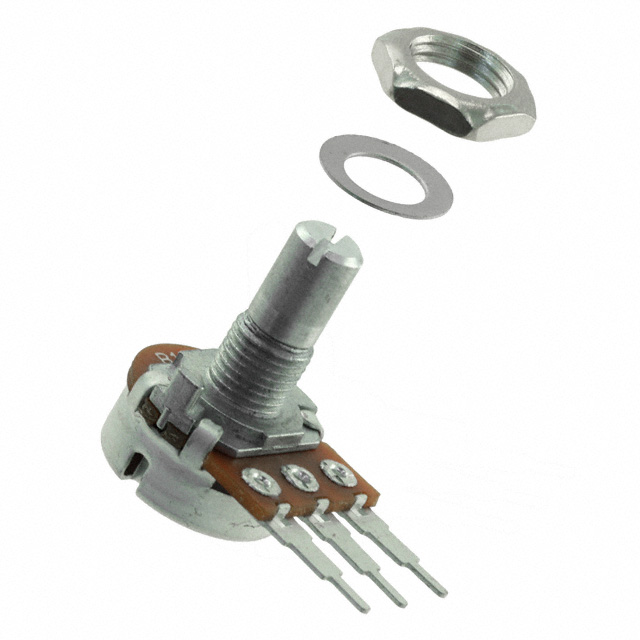

P160KN2-0EC15B1MEG

Active

TT Electronics/BI

POT 1M OHM 1/5W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P160KN2-0EC15B1MEG

Active

TT Electronics/BI

POT 1M OHM 1/5W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P160KN2-0EC15B1MEG

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	15 mm
Actuator Length [z]	0.591 in
Actuator Type	Slotted
Adjustment Type	Side Adjustment
Built in Switch	False
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.2 W
Power (Watts)	1/5
Resistance (Ohms)	1M
Resistive Material	Conductive Plastic
Rotation	300 ░
Size - Body	Round
Size - Body [diameter]	17 mm
Size - Body [diameter]	0.669 in
Taper	Linear
Termination Style	PC Pins
Tolerance	20 %

P160K Series

Part	Power (Watts)	Power (Watts)	Tolerance	Number of Turns	Actuator Length [x]	Actuator Length [x]	Taper	Adjustment Type	Resistive Material	Actuator Type	Number of Gangs	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size - Body [diameter]	Size - Body	Size - Body [diameter]	Bushing Thread	Bushing Thread	Rotation	Termination Style	Actuator Length [z]	Actuator Length [z]	Actuator Length	Resistance (Ohms)	Power (Watts)	Built in Switch	Size - Body [z]	Size - Body [z]
TT Electronics/BI P160KNP-0EB10B100K	0.2 W	1/5	20 %	1	10 mm	0.394 in	Linear	User Defined	Conductive Plastic	Slotted	1	100 kOhms	0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	Solder Lug
TT Electronics/BI P160KNP-0QC20B50K	0.2 W	1/5	20 %	1			Linear	User Defined	Conductive Plastic	Knurled and Slotted	1	50 kOhms	0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	Solder Lug	20 mm	0.787 in
TT Electronics/BI P160KNP-0Q20B100K	0.2 W	1/5	20 %	1			Linear	User Defined	Conductive Plastic	Knurled and Slotted	1	100 kOhms	0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	Solder Lug	20 mm	0.787 in
TT Electronics/BI P160KN2-0EC15B1MEG	0.2 W	1/5	20 %	1			Linear	Side Adjustment	Conductive Plastic	Slotted	1		0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	PC Pins		0.591 in	15 mm	1M
TT Electronics/BI P160KNP-0FC20B10K	0.2 W	1/5	20 %	1			Linear	User Defined	Conductive Plastic	Flatted	1		0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	Solder Lug	20 mm	0.787 in		10k
TT Electronics/BI P160KNP-0FC25B10K	0.2 W	1/5	20 %	1	25 mm	0.984 in	Linear	User Defined	Conductive Plastic	Flatted	1		0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	Solder Lug				10k
TT Electronics/BI P160KNP-0QC15A1K	0.1 W		20 %	1			Logarithmic	User Defined	Conductive Plastic	Knurled and Slotted	1	1 kOhms	0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	Solder Lug		0.591 in	15 mm		0.1 W
TT Electronics/BI P160KNP-4QC15B100K	0.2 W	1/5	20 %	1			Linear	User Defined	Conductive Plastic	Knurled and Slotted	1	100 kOhms	0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	Solder Lug		0.591 in	15 mm			Detent
TT Electronics/BI P160KN-0EC15B100K	0.2 W	1/5	20 %	1			Linear	Side Adjustment	Conductive Plastic	Slotted	1	100 kOhms	0.236 in	6 mm	17 mm	Round	0.669 in	0.75	M7	300 ░	PC Pins		0.591 in	15 mm
TT Electronics/BI P160KNP-1QC15B5K	0.2 W	1/5	20 %	1			Linear	User Defined	Conductive Plastic	Knurled and Slotted	1	5 kOhms	0.236 in	6 mm	17 mm		0.669 in	0.75	M7	300 ░	Solder Lug		0.591 in	15 mm			Detent	0.374 in	9.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.29
		10	$ 1.13
		25	$ 1.02
		40	$ 0.98
		80	$ 0.94
		230	$ 0.90
		440	$ 0.74
		990	$ 0.70
		4950	$ 0.69

Description

General part information

P160K Series

1M Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 0.2W, 1/5W PC Pins
