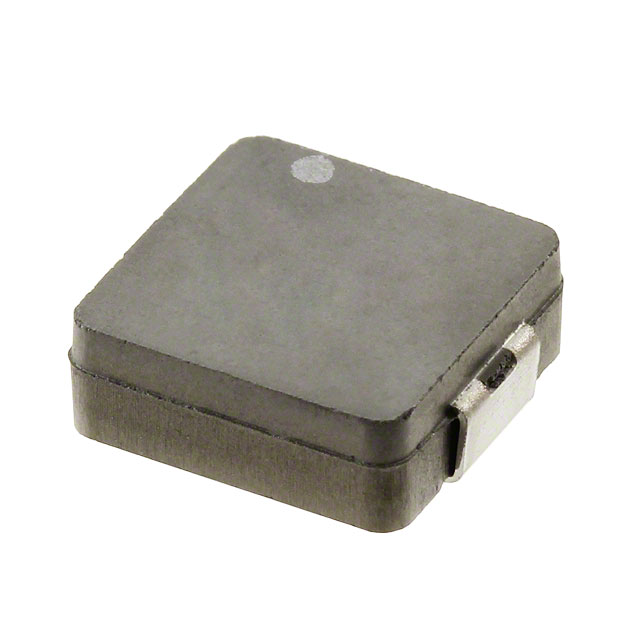

MPLC1040L1R5 - MPLC1040Lxxx

MPLC1040L1R5

Active
KEMET

FIXED IND 1.5UH 12.4A 7 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMPLC1040L1R5 SpecDatasheet+2
MPLC1040L1R5 - MPLC1040Lxxx

MPLC1040L1R5

Active
KEMET

FIXED IND 1.5UH 12.4A 7 MOHM SMD

Deep-Dive with AI

DocumentsMPLC1040L1R5 SpecDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMPLC1040L1R5
Current - Saturation (Isat)12.7 A
Current Rating (Amps)12.4 A
Height - Seated (Max) [Max]0.157 in
Height - Seated (Max) [Max]4 mm
Inductance1.5 µH
Inductance Frequency - Test100 kHz
Mounting TypeSurface Mount
Operating Temperature [Max]120 °C
Operating Temperature [Min]-20 C
Package / Case2-SMD, J-Lead
ShieldingShielded
Size / Dimension [x]11.5 mm
Size / Dimension [x]0.453 "
Size / Dimension [y]0.394 in
Size / Dimension [y]10 mm
Tolerance20 %
TypeWirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.17
10$ 1.84
25$ 1.70
50$ 1.52
100$ 1.26
250$ 1.23
Digi-Reel® 1$ 2.17
10$ 1.84
25$ 1.70
50$ 1.52
100$ 1.26
250$ 1.23
Tape & Reel (TR) 500$ 0.89
NewarkEach (Supplied on Full Reel) 1000$ 1.16
2000$ 1.10
4000$ 0.99
6000$ 0.95
10000$ 0.92

Description

General part information

MPLC1040 Series

1.5 µH Shielded Wirewound Inductor 12.4 A 7mOhm Max 2-SMD, J-Lead
