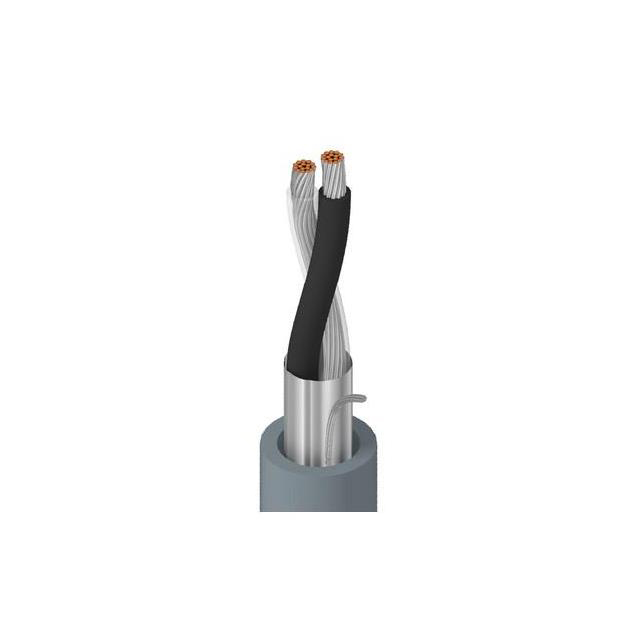

1883A 008N2000

Active

Belden Inc.

2 #24 PP FS FRPVC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1883A 008N2000

Active

Belden Inc.

2 #24 PP FS FRPVC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1883A 008N2000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.129 in
Jacket (Insulation) Diameter [diameter]	3.28 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Gray
Length [x]	609.6 m
Length [x]	2000 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Voltage	300 V
Wire Gauge	24 AWG

1883A Series

Part	Usage	Number of Conductors	Shield Material	Voltage	Length	Length	Shield Coverage	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Features	Conductor Insulation	Jacket Color	Shield Type	Jacket (Insulation) Material	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 1883A 001N1000	Audio	2	Aluminum Polyester	300 V	1000 ft	304.8 m	100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Brown	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm
Belden Inc. 1883A 0101000	Audio	2	Aluminum Polyester	300 V	1000 ft	304.8 m	100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Black	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm
Belden Inc. 1883A 008N2000	Audio	2	Aluminum Polyester	300 V			100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Gray	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm	609.6 m	2000 ft
Belden Inc. 1883A 008U1000	Audio	2	Aluminum Polyester	300 V	1000 ft	304.8 m	100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Gray	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm
Belden Inc. 1883A 007U1000	Audio	2	Aluminum Polyester	300 V	1000 ft	304.8 m	100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Violet	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm
Belden Inc. 1883A 002U1000	Audio	2	Aluminum Polyester	300 V	1000 ft	304.8 m	100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Red	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm
Belden Inc. 1883A 010U1000	Audio	2	Aluminum Polyester	300 V	1000 ft	304.8 m	100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Black	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm
Belden Inc. 1883A 0091000	Audio	2	Aluminum Polyester	300 V	1000 ft	304.8 m	100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)		Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm
Belden Inc. 1883A N3UN2000	Audio	2	Aluminum Polyester	300 V			100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Green	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm	609.6 m	2000 ft
Belden Inc. 1883A 0081000	Audio	2	Aluminum Polyester	300 V	1000 ft	304.8 m	100 %	Copper Tinned	32 AWG	7	0.02 in	0.508 mm	UL Style CMR	Drain Wire	Polypropylene (PP)	Gray	Foil	Poly-Vinyl Chloride (PVC) Riser	Multi-Conductor	-20 C	60 °C	24 AWG	0.129 in	3.28 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2000	$ 0.45

Description

General part information

1883A Series

2 (1 Pair) Conductor Multi-Conductor Cable Gray 24 AWG Foil 2000.0' (609.6m)
