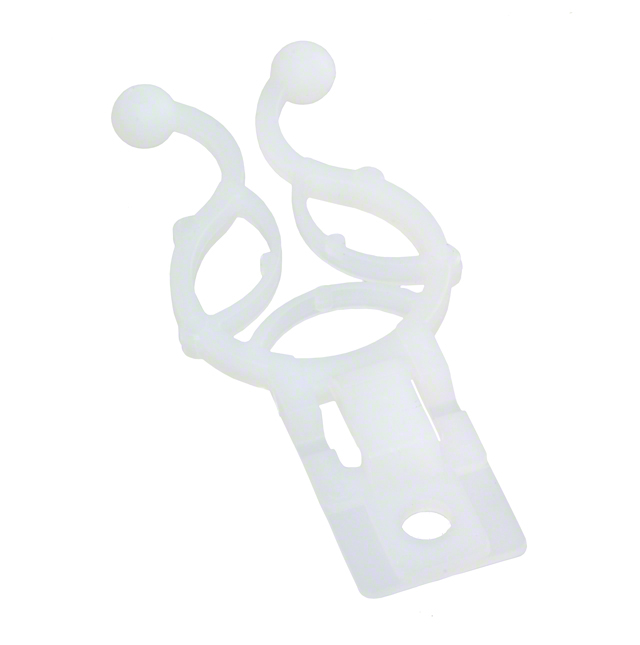

WTLH90300-M4-01

Active

Essentra Access Solutions

CABLE TIE, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 12.2 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

CABLE TIE, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 12.2 MM

Technical Specifications

Parameters and characteristics for this part

Specification	WTLH90300-M4-01

Bundle Center to Mounting Center [x]	9.91 mm
Bundle Center to Mounting Center [x]	0.39 in
Color	Natural
Height [z]	45.72 mm
Height [z]	1.8 in
Length	16.51 mm
Length	0.65 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size [Max] [z]	0.48 in
Opening Size [Max] [z]	12.19 mm
Opening Size [Min] [z]	3.56 mm
Opening Size [Min] [z]	0.14 in
Panel Hole Size [diameter]	4.32 mm
Panel Hole Size [diameter]	0.17 in
Screw Size	M4
Screw Size	#8
Type	Clip, Twist Lock
Type Attributes	Webbed, 90° Hinged, Standoff

Part	Type	Color	Type Attributes	Length	Length	Material	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Height [z]	Height [z]	Mounting Type	Material Flammability Rating	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Screw Size	Screw Size
Essentra Access Solutions WTLH90300-M4-01	Clip Twist Lock	Natural	90° Hinged Standoff Webbed	16.51 mm	0.65 "	Polyamide (PA66) Nylon 6/6	4.32 mm	0.17 in	9.91 mm	0.39 in	45.72 mm	1.8 in	Fastener	UL94 V-2	3.56 mm	0.48 in	0.14 in	12.19 mm	M4	#8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Twist Lock Natural Fastener 0.140" ~ 0.480" (3.56mm ~ 12.19mm)
