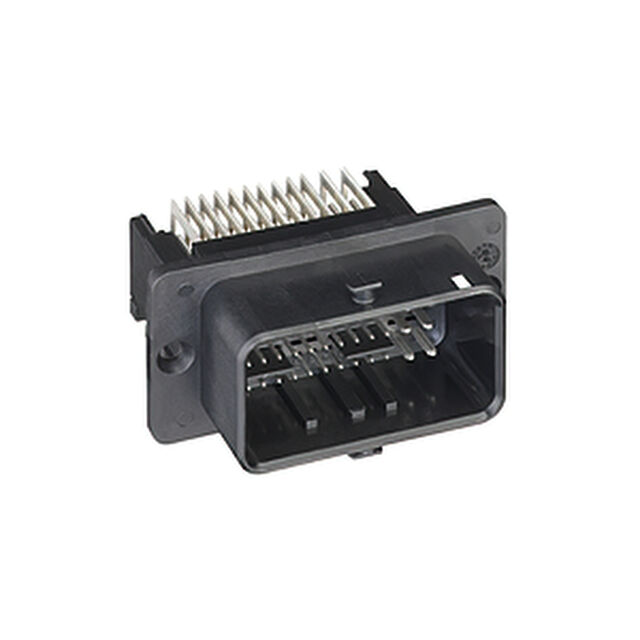

0366380003

Active

Molex

CONN HEADER BRD EDGE 48POS

Deep-Dive with AI

Search across all available documentation for this part.

Documents36638-001 Pkg Spec

0366380003

Active

Molex

CONN HEADER BRD EDGE 48POS

Deep-Dive with AI

Documents36638-001 Pkg Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0366380003

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	157.5 µin
Contact Finish Thickness - Mating	4 µm
Contact Material	Brass
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Mounting Flange, Board Lock
Insulation Color	Brown
Insulation Height [z]	30.61 mm
Insulation Height [z]	1.205 "
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	48
Number of Positions Loaded	All
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

036638 Series

Part	Termination	Contact Material	Contact Type	Style	Insulation Height [z]	Insulation Height [z]	Insulation Material	Connector Type	Mounting Type	Shrouding	Applications	Number of Positions Loaded	Insulation Color	Features	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Height	Insulation Height	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Rows	Contact Finish - Mating
Molex 0366380003	Solder	Brass	Male Pin	Board to Cable/Wire	30.61 mm	1.205 "	Polybutylene Terephthalate (PBT) Glass Filled	Header	Board Edge Right Angle Through Hole	Shrouded - 4 Wall	Automotive	All	Brown	Board Lock Mounting Flange	Tin	Latch Lock	157.5 µin	4 µm	48
Molex 0366380012	Solder	Brass	Male Pin	Board to Cable/Wire			Polybutylene Terephthalate (PBT) Glass Filled	Header	Board Edge Right Angle Through Hole	Shrouded - 4 Wall	Automotive	All	Black	Board Lock Mounting Flange	Tin	Latch Lock	157.5 µin	4 µm	96	1.575 in	40 mm
Molex 0366380004	Solder	Brass	Male Pin	Board to Cable/Wire	30.61 mm	1.205 "	Polybutylene Terephthalate (PBT) Glass Filled	Header	Board Edge Right Angle Through Hole	Shrouded - 4 Wall	Automotive	All	Black	Mounting Flange	Tin	Latch Lock	157.5 µin	4 µm	48			250 VAC	100 °C	-40 °C	160 µin	4.06 µm	Rectangular Square
Molex 0366380001	Solder	Brass	Male Pin	Board to Cable/Wire			Polybutylene Terephthalate (PBT) Glass Filled	Header	Board Edge Right Angle Through Hole	Shrouded - 4 Wall	Automotive		Black	Mounting Flange	Tin	Latch Lock	157.5 µin	4 µm	96	1.575 in	40 mm							72
Molex 0366380022	Solder		Male Blade Male Pin	Board to Cable/Wire			Polybutylene Terephthalate (PBT) Glass Filled	Header	Panel Mount Right Angle Through Hole	Shrouded - 4 Wall		All	Black	Board Lock Mounting Flange	Tin	Push-Pull			48	1.217 in	30.91 mm						Rectangular		0.157 in	4 mm	UL94 V-0
Molex 0366380019	Solder	Brass	Male Pin	Board to Cable/Wire			Polybutylene Terephthalate (PBT) Glass Filled	Header	Board Edge Right Angle Through Hole	Shrouded - 4 Wall	Automotive	All	Black		Tin	Latch Lock	50 µin	1.27 µm	36	1.217 in	30.91 mm				157.5 Áin	4 Ám	Square					3	Gold
Molex 0366380009	Solder	Brass	Male Pin	Board to Cable/Wire	30.61 mm	1.205 "	Polybutylene Terephthalate (PBT) Glass Filled	Header	Board Edge Right Angle Through Hole	Shrouded - 4 Wall	Automotive		Brown	Mounting Flange	Tin	Latch Lock			48			250 VAC	100 °C	-40 °C	160 µin	4.06 µm	Rectangular Square	36				3
Molex 0366380005	Solder	Brass	Male Pin	Board to Cable/Wire	30.61 mm	1.205 "	Polybutylene Terephthalate (PBT) Glass Filled	Header	Board Edge Right Angle Through Hole	Shrouded - 4 Wall	Automotive	All	Brown	Mounting Flange	Tin	Latch Lock	157.5 µin	4 µm	48

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.92
		10	$ 23.05
		100	$ 19.18
		500	$ 17.62

Description

General part information

036638 Series

Connector Header Board Edge, Through Hole, Right Angle 48 position

Documents

Technical documentation and resources

36638-001 Pkg Spec

Datasheet
