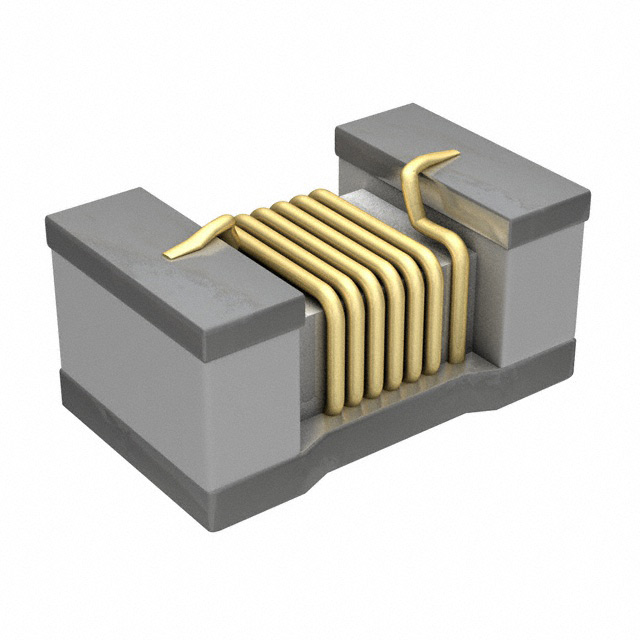

LQW15AW56NG80D

Active

Murata Power Solutions Inc.

FIXED IND 56NH 480MA 0.52OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW15AW56NG80D

Active

Murata Power Solutions Inc.

FIXED IND 56NH 480MA 0.52OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW15AW56NG80D

Current Rating (Amps)	480 mA
DC Resistance (DCR) [Max]	520 mOhm
Frequency - Self Resonant	2.1 GHz
Height - Seated (Max) [Max]	0.66 mm
Height - Seated (Max) [Max]	0.026 in
Inductance	56 nH
Inductance Frequency - Test	250 MHz
Material - Core	Non-Magnetic
Mounting Type	Surface Mount
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Package / Case	0402 (1005 Metric)
Q @ Freq	250 MHz, 33
Shielding	Unshielded
Size / Dimension [x]	0.04 "
Size / Dimension [x]	1.02 mm
Size / Dimension [y]	0.61 mm
Size / Dimension [y]	0.024 "
Supplier Device Package	0402
Tolerance	2 %
Type	Wirewound

LQW15AW Series

Part	Supplier Device Package	Package / Case	Current Rating (Amps)	Material - Core	Q @ Freq	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Inductance	Shielding	Mounting Type	Inductance Frequency - Test
Murata Power Solutions Inc. LQW15AW56NG80D	0402	0402 (1005 Metric)	480 mA	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	2.1 GHz	2 %	140 °C	-40 °C	520 mOhm	0.66 mm	0.026 in	Wirewound	56 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AW82NG80D	0402	0402 (1005 Metric)	370 mA	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.7 GHz	2 %	140 °C	-40 °C	870 mOhm	0.66 mm	0.026 in	Wirewound	82 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AWR15G80D	0402	0402 (1005 Metric)	0.28 A	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.4 GHz	2 %	140 °C	-40 °C	1.71 Ohm	0.66 mm	0.026 in	Wirewound	150 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AW75NJ80D	0402	0402 (1005 Metric)	450 mA	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.8 GHz	5 %	140 °C	-40 °C	610 mOhm	0.66 mm	0.026 in	Wirewound	75 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AWR18H80D	0402	0402 (1005 Metric)	0.26 A	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.3 GHz	3 %	140 °C	-40 °C	2.2 Ohm	0.66 mm	0.026 in	Wirewound	180 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AWR16H80D	0402	0402 (1005 Metric)	0.28 A	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.3 GHz	3 %	140 °C	-40 °C	1.86 Ohm	0.66 mm	0.026 in	Wirewound	160 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AWR22G80D	0402	0402 (1005 Metric)	0.22 A	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.1 GHz	2 %	140 °C	-40 °C	2.75 Ohm	0.66 mm	0.026 in	Wirewound	220 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AWR15H80D	0402	0402 (1005 Metric)	0.28 A	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.4 GHz	3 %	140 °C	-40 °C	1.71 Ohm	0.66 mm	0.026 in	Wirewound	150 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AW75NG80D	0402	0402 (1005 Metric)	450 mA	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.8 GHz	2 %	140 °C	-40 °C	610 mOhm	0.66 mm	0.026 in	Wirewound	75 nH	Unshielded	Surface Mount	250 MHz
Murata Power Solutions Inc. LQW15AW68NH80D	0402	0402 (1005 Metric)	480 mA	Non-Magnetic	33 250 MHz	0.61 mm	0.04 "	0.024 "	1.02 mm	1.8 GHz	3 %	140 °C	-40 °C	560 mOhm	0.66 mm	0.026 in	Wirewound	68 nH	Unshielded	Surface Mount	250 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.31
		10	$ 0.25
		25	$ 0.23
		50	$ 0.21
		100	$ 0.19
		250	$ 0.18
		500	$ 0.16
		1000	$ 0.13
		2500	$ 0.12
	Digi-Reel®	1	$ 0.30
		10	$ 0.23
		25	$ 0.21
		50	$ 0.20
		100	$ 0.18
		250	$ 0.16
		500	$ 0.15
		1000	$ 0.14
		2500	$ 0.13
	Tape & Reel (TR)	10000	$ 0.12
		30000	$ 0.11
		50000	$ 0.11

Description

General part information

LQW15AW Series

56 nH Unshielded Wirewound Inductor 480 mA 520mOhm Max 0402 (1005 Metric)
