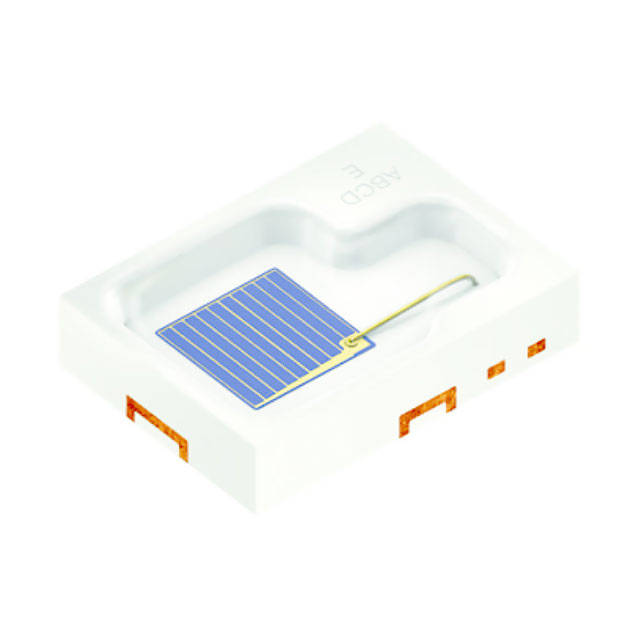

SFH 4770S
Activeams-OSRAM USA INC.
EMITTER IR 860NM 1.5A SYNIOS
Deep-Dive with AI
Search across all available documentation for this part.
SFH 4770S
Activeams-OSRAM USA INC.
EMITTER IR 860NM 1.5A SYNIOS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 4770S |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead |
| Radiant Intensity (Ie) Min @ If | 370 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength | 860 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.72 | |
| 10 | $ 1.81 | |||
| 100 | $ 1.39 | |||
| 500 | $ 1.26 | |||
| 1000 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 2.72 | ||
| 10 | $ 1.81 | |||
| 100 | $ 1.39 | |||
| 500 | $ 1.26 | |||
| 1000 | $ 1.08 | |||
| Tape & Reel (TR) | 2000 | $ 1.02 | ||
| 6000 | $ 1.00 | |||
| 10000 | $ 0.98 | |||
Description
General part information
SFH4770 Series
Infrared (IR) Emitter 860nm 3.2V 1.5A 370mW/sr @ 1A 120° 2-SMD, No Lead
