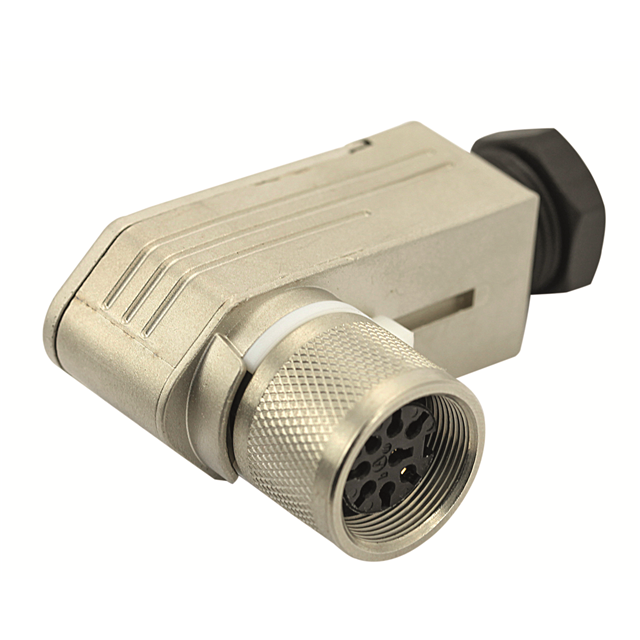

C091 11F003 001 2

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11F003 001 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-3
Shielding	Shielded
Type	For Female Sockets

Part	Housing Color	Shell Finish	Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shielding	Connector Type	Shell Material	Note	Features	Shell Size - Insert	Contact Type	Contact Size	Contact Shape	Mounting Type	Material Flammability Rating	Ingress Protection
Amphenol Sine Systems Corp C091 11F003 001 2	Silver	Nickel	For Female Sockets	Thermoplastic	100 °C	-40 °C	Keyed	Shielded	Receptacle Housing	Zinc Die Cast	Contacts Not Included	Backshell Cable Clamp Coupling Nut	M16-3	Crimp	1.5 mm	Circular	Free Hanging (In-Line) Right Angle	UL94 V-0	IP65 IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Receptacle Housing Free Hanging (In-Line), Right Angle Backshell, Cable Clamp, Coupling Nut

Technical documentation and resources
