A6X30143759

Active

Siemens

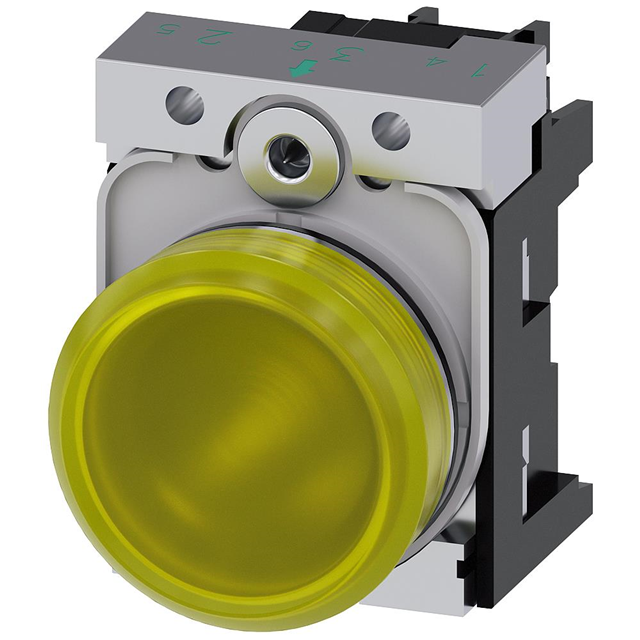

INDICATOR LIGHT. YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30143759

Active

Siemens

INDICATOR LIGHT. YELLOW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6X30143759

Ingress Protection	NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1
Lamp Color	Yellow
Lens Color	Yellow
Lens Size [diameter]	22 mm
Lens Transparency	Diffused
Millicandela Rating [Max]	1400 mcd
Millicandela Rating [Min]	900 mcd
Panel Cutout Dimensions	0.88 in
Panel Cutout Dimensions	22.3 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Screw Terminal
Type	LED
Voltage	230 V

A6X30143 Series

...

Part	Type	Millicandela Rating [Min]	Millicandela Rating [Max]	Ratings	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Lens Transparency	Lens Color	Panel Cutout Shape	Ingress Protection	Termination Style	Voltage
Siemens A6X30143132	LED	900 mcd	1800 mcd	AC	22 mm	0.88 in	22.3 mm	Green	Diffused	Green	Round	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Screw Terminal	230 V
Siemens A6X30143752	LED	900 mcd	1400 mcd	AC	22 mm	0.88 in	22.3 mm	Red	Diffused	Red	Round	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Screw Terminal	230 V
Siemens A6X30143749	LED	900 mcd	1400 mcd	AC	22 mm	0.88 in	22.3 mm	Red	Diffused	Red	Round	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Screw Terminal	230 V
Siemens A6X30143006	LED			AC	30 mm	0.88 in	22.3 mm	Clear	Clear	Colorless	Round	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X		110 V
Siemens A6X30143551	LED	450 mcd	1120 mcd	AC	22 mm	0.88 in	22.3 mm	Yellow	Diffused	Yellow	Round	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Spring Terminal	110 V
Siemens A6X30143759	LED	900 mcd	1400 mcd	AC	22 mm	0.88 in	22.3 mm	Yellow	Diffused	Yellow	Round	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Screw Terminal	230 V
Siemens A6X30143577	LED	450 mcd	1120 mcd	AC	22 mm	0.88 in	22.3 mm	Blue	Diffused	Blue	Round	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Spring Terminal	110 V
Siemens A6X30143798	LED			AC	30 mm	0.88 in	22.3 mm	Blue	Diffused	Blue	Round	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X		230 V
Siemens A6X30143802	LED	900 mcd	1400 mcd	AC	22 mm	0.88 in	22.3 mm	White	Diffused	White	Round	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Screw Terminal	230 V
Siemens A6X30143780	LED	900 mcd	1800 mcd	AC	22 mm	0.88 in	22.3 mm	Green	Diffused	Green	Round	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Spring Terminal	230 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 80.13
		10	$ 68.82
		100	$ 65.38

Description

General part information

A6X30143 Series

LED Panel Indicator Yellow Diffused 230V Screw Terminal
