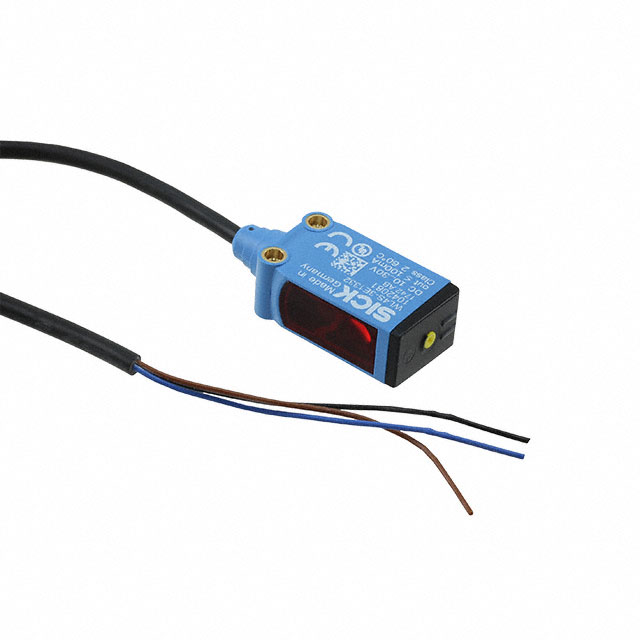

1042081

Active

SICK, Inc.

SENSOR RETROREFLCTV 3M NPN DO/LO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1042081

Active

SICK, Inc.

SENSOR RETROREFLCTV 3M NPN DO/LO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1042081

Connection Method	Cable
Ingress Protection	IP66, IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Response Time	500 µs
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

WL4S Series

Part	Sensing Distance	Sensing Distance	Light Source	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Sensing Method	Connection Method	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Cable Length	Cable Length	Adjustment Type
SICK, Inc. 1042069	157.48 in	4 m	RED (650nm)	IP67	-40 °C	60 °C	500 µs	Retroreflective	Connector M8	PNP	30 VDC	10 VDC
SICK, Inc. 1042081			Red LED	IP66 IP67	-40 °C	60 °C	500 µs	Retroreflective	Cable		30 VDC	10 VDC
SICK, Inc. 1048044	157.48 in	4 m	RED (650nm)	IP66 IP67 IP68 IP69K	-30 °C	70 °C	500 µs	Retroreflective	Cable	PNP	30 VDC	10 VDC	78.74 in	2 m
SICK, Inc. WL4S-3F1330V	157.48 in	4 m	RED (650nm)	IP66 IP67 IP68 IP69K	-30 °C	70 °C	500 µs	Retroreflective	Cable	PNP	30 VDC	10 VDC	78.74 in	2 m
SICK, Inc. WL4S-3P3232H	196.85 in	5 m	RED (650nm)		-30 °C	70 °C	500 µs	Retroreflective	Cable with Connector	PNP	30 VDC	10 VDC	5.906 in	150 mm	Adjustable
SICK, Inc. WL4S-3P3132V	196.85 in	5 m	RED (650nm)	IP66 IP67 IP68 IP69K	-30 °C	70 °C	500 µs	Retroreflective	Cable with Connector	PNP	30 VDC	10 VDC	5.906 in	150 mm	Adjustable
SICK, Inc. 1054695	157.48 in	4 m	RED (650nm)	IP67	-40 °C	60 °C	500 µs	Retroreflective	Connector M8	PNP	30 VDC	10 VDC
SICK, Inc. 1048115	98.425 in	2.5 m	RED (650nm)	IP66 IP67 IP68 IP69K	-30 °C	70 °C	500 µs	Retroreflective	Cable with Connector	PNP	30 VDC	10 VDC	5.906 in	150 mm
SICK, Inc. 1054715	196.85 in	5 m	RED (650nm)	IP66 IP67 IP68 IP69K	-30 °C	70 °C	500 µs	Retroreflective	Connector M12	PNP	30 VDC	10 VDC			Adjustable
SICK, Inc. WL4S-3F1332	196.85 in	5 m	RED (650nm)	IP67	-40 °C	60 °C	500 µs	Retroreflective	Cable	PNP	30 VDC	10 VDC	78.74 in	2 m	Adjustable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 180.00

Description

General part information

WL4S Series

Retroreflective Optical Sensor 0" ~ 118.110" (0m ~ 3m) NPN - Dark-ON/Light-ON - Selectable
