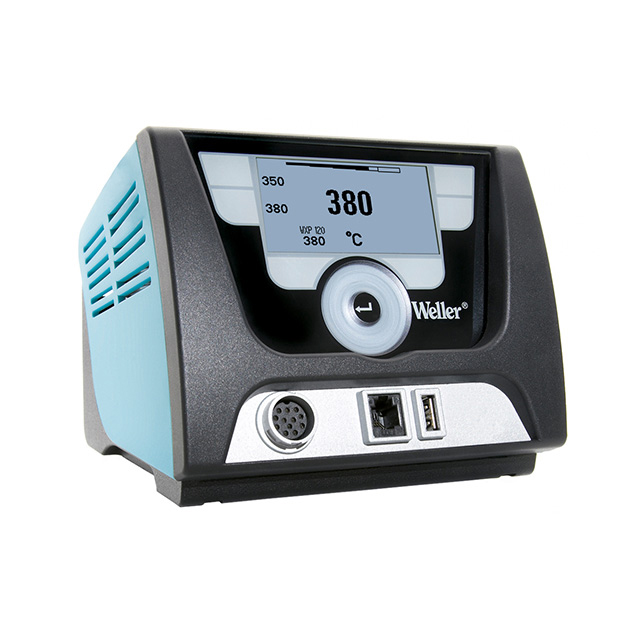

WX1N

Active

Apex Tool Group

SOLDERING STATION 200W 1 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING STATION 200W 1 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WX1N

Base Unit	WX1
Control/Display Type	Digital
Features	USB Port, LCD Display, Auto Off, Touch Screen, ESD Safe
Number of Channels	1
Plug Type	NEMA 5-15
Supplied Tips/Nozzles	Sold Separately
Temperature Range [Max]	999 °F
Temperature Range [Max]	550 °C
Temperature Range [Min]	150 °F
Temperature Range [Min]	50 °C
Type	Soldering
Voltage - Input	120 V
Voltage - Output	24 V
Wattage	200 W

Part	Base Unit	Voltage - Input	Type	Control/Display Type	Wattage	Number of Channels	Plug Type	Voltage - Output	Supplied Tips/Nozzles	Features	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]
Apex Tool Group WX1N	WX1	120 V	Soldering	Digital	200 W	1	NEMA 5-15	24 V	Sold Separately	Auto Off ESD Safe LCD Display Touch Screen USB Port	999 °F	150 °F	550 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 600.00

General part information

SOLDERING STATION 200W 1 CH 120V
