M4616 SL199

Active

ALPHA WIRE

CABLE 30COND 24AWG SHLD 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 30COND 24AWG SHLD 3000'

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Conductor Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Length	Length	Shield Coverage	Voltage	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Features	Wire Gauge	Cable Type	Shield Type	Jacket Color	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE M4616 SL199	UL Style 2464	Copper Tinned	Poly-Vinyl Chloride (PVC)	32 AWG	7	Aluminum	914.4 m	3000 ft	100 %	300 V	30	-20 C	80 C	Drain Wire Rip Cord	24 AWG	Multi-Conductor	Foil	Slate	Poly-Vinyl Chloride (PVC)
ALPHA WIRE M4616 SL002	UL Style 2464	Copper Tinned	Poly-Vinyl Chloride (PVC)	32 AWG	7	Aluminum			100 %	300 V	30	-20 C	80 C	Drain Wire Rip Cord	24 AWG	Multi-Conductor	Foil	Slate	Poly-Vinyl Chloride (PVC)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.52

General part information

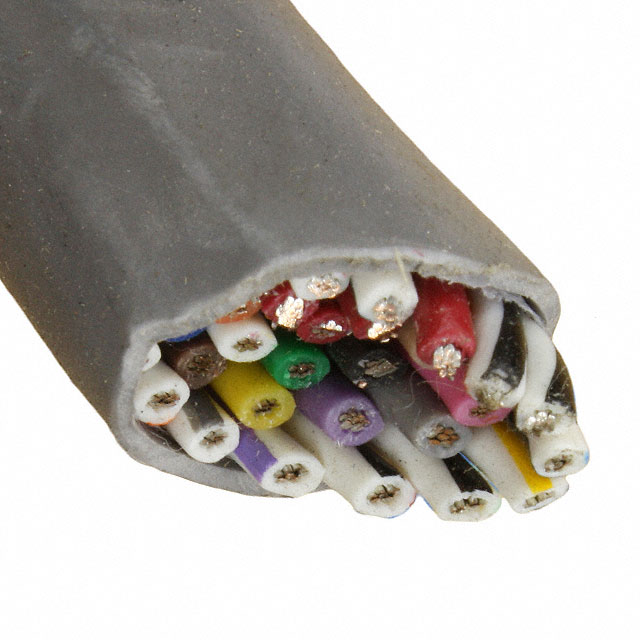

30 Conductor Multi-Conductor Cable Slate 24 AWG Foil 3000' (914.4m)

Technical documentation and resources
