B3P5S-VH

Active

JST Sales America Inc.

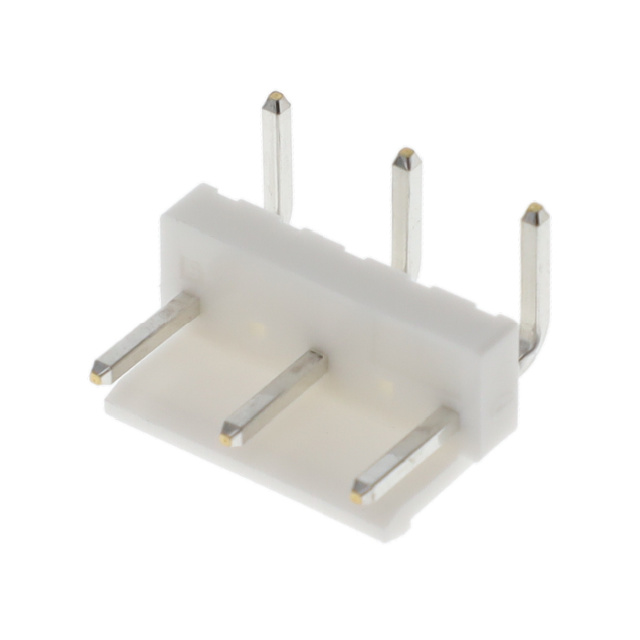

CONN HEADER R/A 3POS 7.92MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 3POS 7.92MM

Technical Specifications

Parameters and characteristics for this part

Specification	B3P5S-VH

Connector Type	Header
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.312 in
Pitch - Mating	7.92 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Voltage Rating	Shrouding	Number of Positions Loaded	Termination	Insulation Color	Mounting Type	Number of Rows	Fastening Type	Style	Material Flammability Rating	Insulation Material	Contact Material	Connector Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Type	Contact Shape
JST Sales America Inc. B3P5S-VH	-25 °C	85 °C	0.312 in	7.92 mm	3.6 mm	0.142 in	0.335 "	8.51 mm	250 VDC	Shrouded - 1 Wall	All	Solder	Natural	Through Hole Right Angle	1	Locking Ramp	Board to Cable/Wire	UL94 V-0	Polyamide (PA66) Nylon 6/6	Brass	Header	7.7 mm	0.303 in	7 A	Male Pin	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 0.23

General part information

Connector Header Through Hole, Right Angle 3 position 0.312" (7.92mm)
