60A18-4-060C

Active

Grayhill Inc.

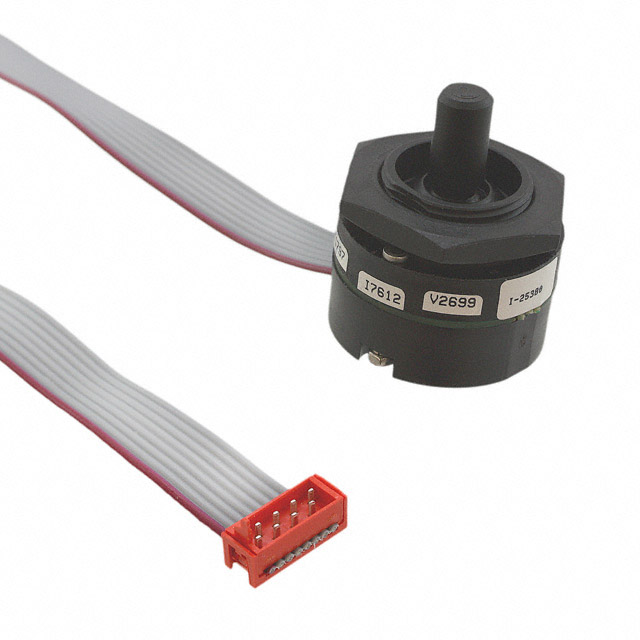

SWITCH JOYSTICK FLATTED 6" CBL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

60A18-4-060C

Active

Grayhill Inc.

SWITCH JOYSTICK FLATTED 6" CBL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	60A18-4-060C

Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Contact Finish	Phosphor Bronze
Contact Material	Silver (Ag)
Current Rating (Amps)	10 mA
Electrical Life	500000 Cycles
Mechanical Life	500000 Cycles
Operating Force	400 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Digital (Mechanical Switch, Pulse)
Panel Cutout Dimensions [diameter]	17.25 mm
Switch Function	360° Rotational, 4-Way Directional, Center Select
Termination Style	Cable with Connector
Type	Joystick, 3 - Axis
Voltage - Supply	5 V
Voltage Rating - DC	5 V

60A18 Series

Part	Output	Electrical Life	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - DC	Operating Force	Actuator Type [diameter]	Actuator Type	Termination Style	Contact Material	Switch Function	Voltage - Supply	Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)
Grayhill Inc. 60A18-4-RAC	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	Connector	Silver (Ag)	360° Rotational 4-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-4-060C	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	Cable with Connector	Silver (Ag)	360° Rotational 4-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-4-080S	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	Cable with Connector	Silver (Ag)	360° Rotational 4-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-4-090S	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	Cable with Connector	Silver (Ag)	360° Rotational 4-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-4-050C	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	Cable with Connector	Silver (Ag)	360° Rotational 4-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-8-120C	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	Cable with Connector	Silver (Ag)	360° Rotational 8-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-8-020C	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	Cable with Connector	Silver (Ag)	360° Rotational 8-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-4-090C	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	Cable with Connector	Silver (Ag)	360° Rotational 4-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-4-080C	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	PC Pin	Silver (Ag)	360° Rotational 4-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA
Grayhill Inc. 60A18-8-P	Digital (Mechanical Switch Pulse)	500000 Cycles	Phosphor Bronze	85 °C	-40 °C	500000 Cycles	5 V	400 gf	6.35 mm	Flatted	PC Pin	Silver (Ag)	360° Rotational 8-Way Directional Center Select	5 V	Joystick 3 - Axis	17.25 mm	10 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.36
		10	$ 74.69
		25	$ 72.36
		50	$ 67.69
		100	$ 63.95

Description

General part information

60A18 Series

Joystick, 3 - Axis Digital (Mechanical Switch, Pulse) Output
