09332162602
ActiveHARTING Technology Group

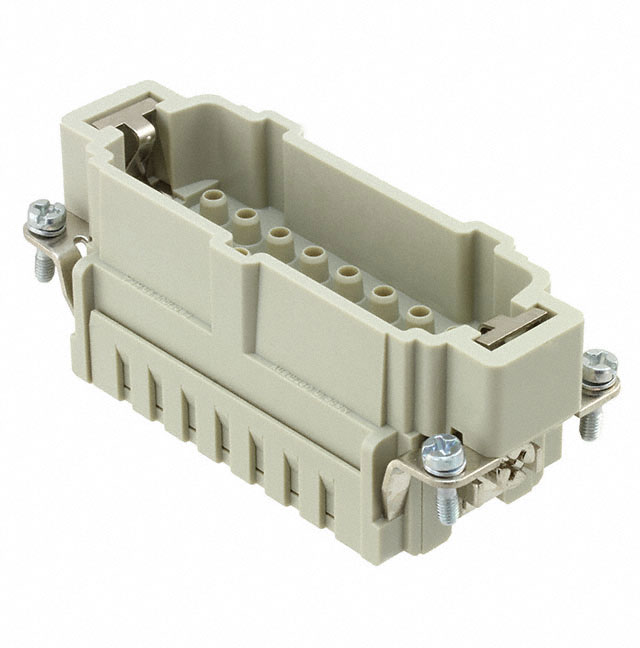

HEAVY DUTY CONNECTOR, 16+PE, LESS CONTACTS, HAN E HMC SERIES, INSERT, 17 CONTACTS, 16B, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
09332162602
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, 16+PE, LESS CONTACTS, HAN E HMC SERIES, INSERT, 17 CONTACTS, 16B, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09332162602 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han E® HMC |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 16+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 B |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09332162 Series
The 09332162602 from Harting is a 16 B size, Han® 16 E HMC (High Mating Cycles) male insert with crimp termination. Suitable for hoods/housings of Han® B HMC series.
