EVQ4480-V-00A
ActiveMONOLITHIC POWER SYSTEMS (MPS)

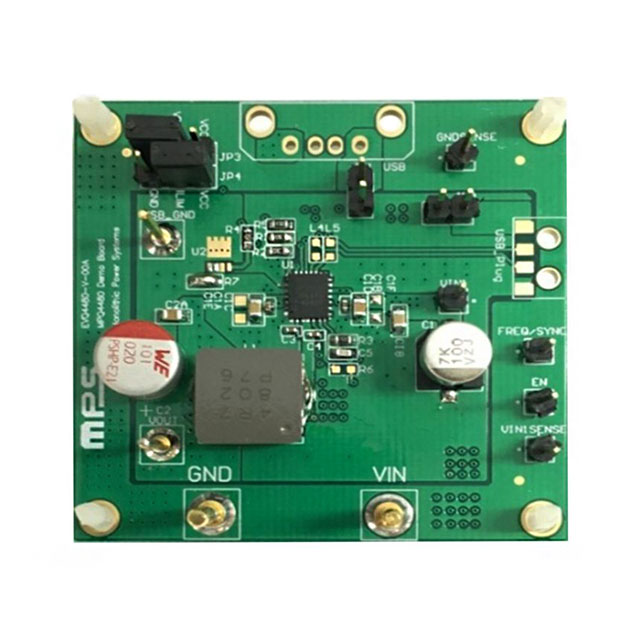

MPQ4480 EVAL BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EVQ4480-V-00A
ActiveMONOLITHIC POWER SYSTEMS (MPS)
MPQ4480 EVAL BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVQ4480-V-00A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 6 A |
| Frequency - Switching | 440 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MPQ4480 |
| Voltage - Input [Max] | 36 V |
| Voltage - Input [Min] | 4.2 V |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.00 | |
Description
General part information
Q4480 Series
MPQ4480 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
