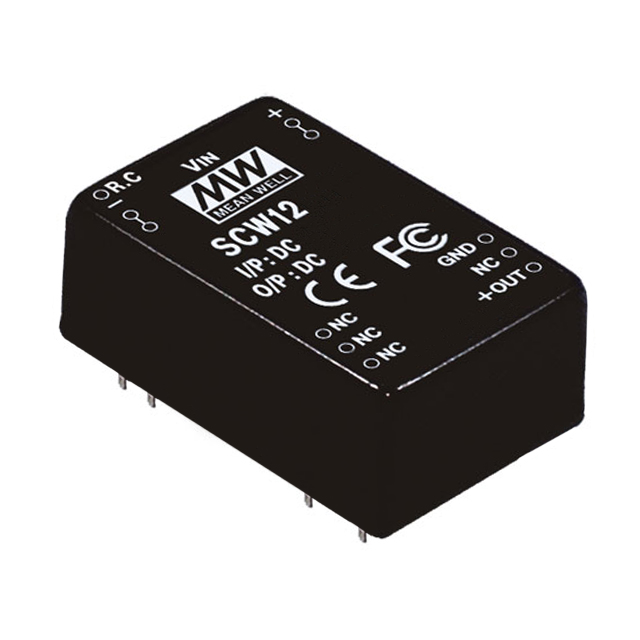

SCW12C-12

Active

MEAN WELL USA Inc.

DC DC CONVERTER 12V 12W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC DC CONVERTER 12V 12W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage - Output 1	Applications	Package / Case	Voltage - Input (Min) [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Control Features	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	Voltage - Isolation	Type	Package / Case
MEAN WELL USA Inc. SCW12C-12	OCP Remote On/Off SCP	12 V	ITE (Commercial)	24-DIP Module 8 Leads	36 V	Through Hole	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	Active High Enable	1 A	12 W	72 V	-25 °C	71 °C	1	83 %	1.5 kV	Isolated Module
MEAN WELL USA Inc. SCW12B-12	OCP Remote On/Off SCP	12 V	ITE (Commercial)	24-DIP Module 8 Leads	18 V	Through Hole	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	Active High Enable	1 A	12 W	36 V	-25 °C	71 °C	1	83 %	1.5 kV	Isolated Module
MEAN WELL USA Inc. SCW12B-05	OCP Remote On/Off SCP	5 V	ITE (Commercial)	24-DIP Module	18 V	Through Hole	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	Active High Enable	2.4 A	12 W	36 V	-25 °C	71 °C	1	83 %	1.5 kV	Isolated Module	9 PC Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.25

General part information

Isolated Module DC DC Converter 1 Output 12V 1A 36V - 72V Input
