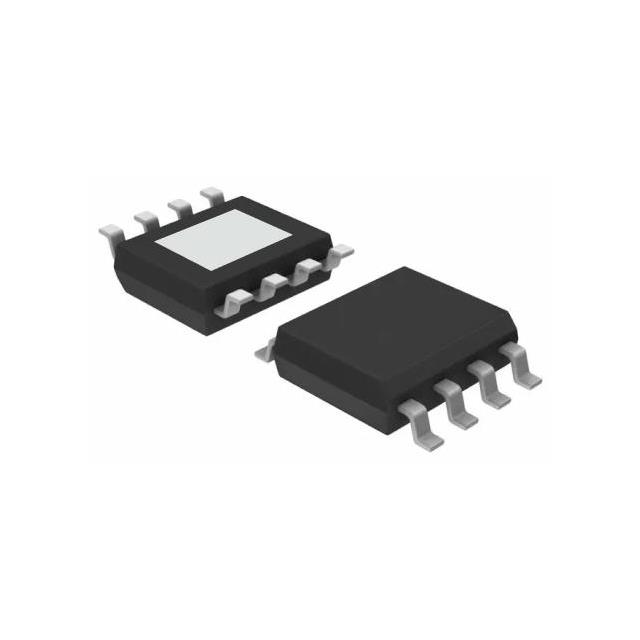

LS9200
ActiveLSI/CSI
DIMMABLE LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS9200
ActiveLSI/CSI
DIMMABLE LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LS9200 |
|---|---|
| Applications | Lighting |
| Current - Output / Channel | 200 mA |
| Dimming | PWM |
| Frequency | 22 kHz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Supplier Device Package | 8-SOP-EP |
| Topology | Step-Up (Boost) |
| Type | AC DC Offline Switcher |
| Voltage - Output [Max] | 75 V |
| Voltage - Output [Min] | 5 VDC |
| Voltage - Supply (Max) [Max] | 10 V |
| Voltage - Supply (Min) [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LS9200 Series
LED Driver IC 1 Output AC DC Offline Switcher Step-Up (Boost) PWM Dimming 200mA 8-SOP-EP
