170-23000

Active

HELLERMANNTYTON

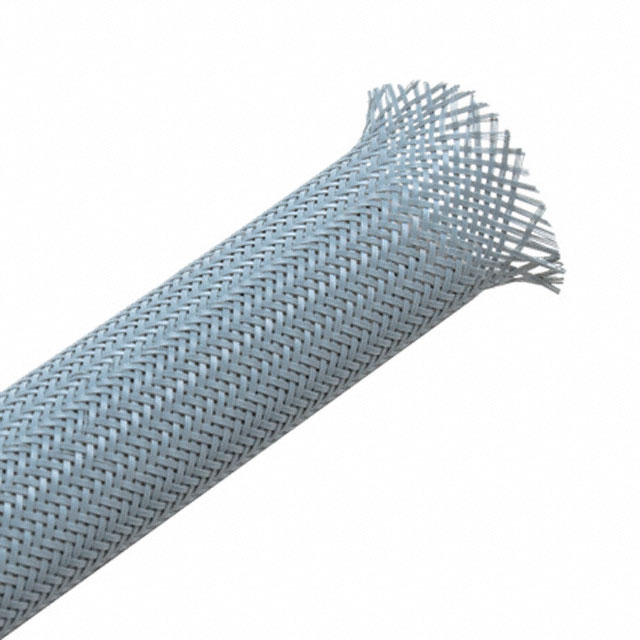

EXPAND SLEEVE 1.181" X 164' GRAY

Search across all available documentation for this part.

Active

HELLERMANNTYTON

EXPAND SLEEVE 1.181" X 164' GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	170-23000

Abrasion Protection	Abrasion and Cut Resistant
Color	Gray
Diameter - Inside, Expanded [diameter]	1.26 in
Diameter - Inside, Expanded [diameter]	32 mm
Features	Solvent Resistant, Salt Resistant
Heat Protection	Heat Stabilized
Length [x]	50 m
Length [x]	164 ft
Liquid Protection	Fluid Resistant, Gasoline Resistant, Moisture Resistant
Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-60 °C
Type	Sleeve
Type Attributes	Expandable

Part	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Heat Protection	Liquid Protection	Type	Color	Length [x]	Length [x]	Material Flammability Rating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Type Attributes	Material
HELLERMANNTYTON 170-23000	1.26 in	32 mm	Heat Stabilized	Fluid Resistant Gasoline Resistant Moisture Resistant	Sleeve	Gray	50 m	164 ft	UL94 V-2	Salt Resistant Solvent Resistant	150 °C	-60 °C	Abrasion and Cut Resistant	Expandable	Polyamide (PA66) Nylon 6/6 Halogen Free

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 293.28
