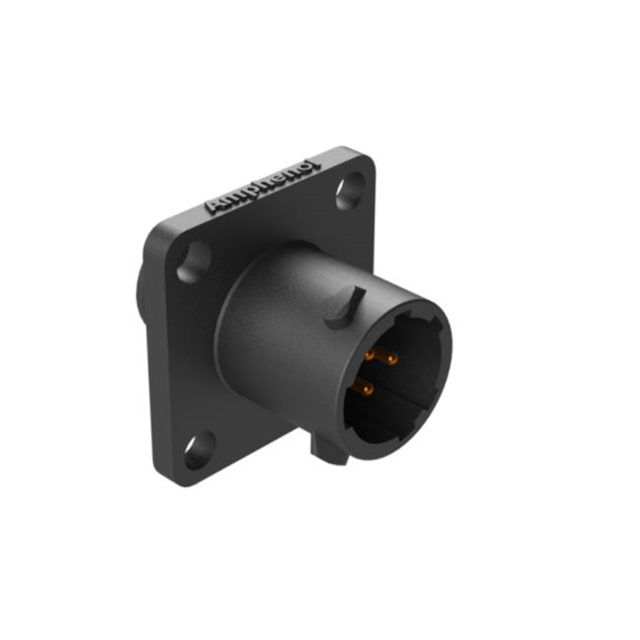

RTS08N4P

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	RTS08N4P

Applications	Instrumentation, Automation, Transportation, Marine, Telecom, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Ingress Protection	IP69K, IP67
Insert Material	Chloroprene Rubber (CR)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	8-4
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Voltage Rating	Applications	Orientation	Ingress Protection	Color	Insert Material	Primary Material	Number of Positions	Contact Finish - Mating	Connector Type	Shielding	Current Rating (Amps)	Contact Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Fastening Type	Material Flammability Rating
Amphenol Sine Systems Corp RTS08N4P	250 VAC	Automation Industrial Instrumentation Marine Telecom Transportation	N	IP67 IP69K	Black	Chloroprene Rubber (CR)	Plastic	4	Gold	Male Pins Receptacle	Unshielded	7 A	Copper Alloy	8-4	-40 °C	105 ░C	Flange	Bayonet Lock	UL94 V-0
Amphenol Sine Systems Corp RTS08N3P	250 VAC	Automation Industrial Instrumentation Marine Telecom Transportation	N	IP67 IP69K	Black	Chloroprene Rubber (CR)	Plastic		Gold	Male Pins Receptacle	Unshielded	7 A	Copper Alloy	8-3	-40 °C	105 ░C	Flange	Bayonet Lock	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
