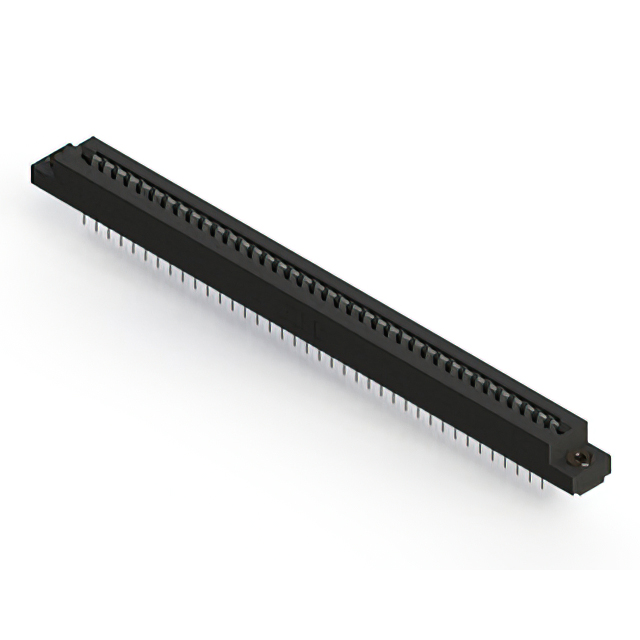

857-076-424-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-076-424-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-076-424-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
857-076 Series
...
| Part | Read Out | Number of Rows | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Gender | Contact Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Termination Rows | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Card Type | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Contact Finish | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 2 | Through Hole | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Black | Gold | |||
EDAC Inc. | Dual | 2 | Through Hole | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Black | Gold | ||||||
EDAC Inc. | Dual | 2 | Board Edge Straddle Mount | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Black | Tin | Card Extender | ||||
EDAC Inc. | Dual | 2 | Through Hole | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Black | Gold | 3.25 mm | 0.128 in | |||
EDAC Inc. | Dual | 2 | Through Hole | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Black | Tin | 3.25 mm | 0.128 in | |||||
EDAC Inc. | Dual | 2 | Through Hole | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Black | Gold | |||
EDAC Inc. | Dual | 2 | Through Hole | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Wire Wrap | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Black | Tin | |||||
EDAC Inc. | Dual | 2 | Board Edge Straddle Mount | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Black | Tin | Card Extender | ||||||
EDAC Inc. | Dual | 2 | Through Hole | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Black | Tin | |||||
EDAC Inc. | Dual | 2 | Through Hole | 125 °C | -40 °C | Copper Alloy | Female | Semi Bellows | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 2 | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Black | Gold | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 125.34 | |
Description
General part information
857-076 Series
76 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
